Hydro Quip CS800-C2 Model Spa Controller Kit, 220V (SPECIAL ORDER)

The Hydro-Quip CS800-C2 Model Pneumatic Spa Controller with heater is a basic control unit. Rated 220V Input, 220V Pump 1 Circuit, 110V Blower Circuit, and 220V Ozone Circuit. It has a built-in Full Range Thermostat, and will control a two speed pump and a blower from the provided air buttons and tubing. The heater is rated 4.5kW, 15 inch x 2.0 inch Flo-Thru Heater.

SpaGuts P/N: 10-150-8003

SPECIAL ORDER NOTES: THIS ITEM IS A SPECIAL ORDER AND HAS AN ESTIMATED 10-20 BUSINESS DAYS LEAD TIME BEFORE SHIPPING. SPECIAL ORDERS ARE NON-RETURNABLE AND CANNOT BE CANCELED ONCE THE ORDER IS PLACED.

System Dimension (Approx): 5 inch H x 15 inch W x 5 inch D; Heater Dimension (Approx): 15 inch L x 2.0 inch D

Standard Feature:

• SINGLE PHASE, 220VAC, 60HZ (Neutral Required)
• 4.5KW Hi-Flo Heater Assembly
• Stainless Steel Heater Housing
• Full Range Thermostat (59 to 104 °F)
• High Limit and Pressure Switch Protected
• Color Coded Component Receptacles
• ETL Approved
• Heater "ON" Indicator Light
• Aluminum Housing
• 220V 2-Speed Pump Circuit, 13A Max
• 110V 1-Speed Blower Circuit, 8A Max
• 220V Ozone Circuit, 2A Max
• 110V ACC Circuit, Constant, 2A Max
• 1 Year Manufacturer's Limited Warranty

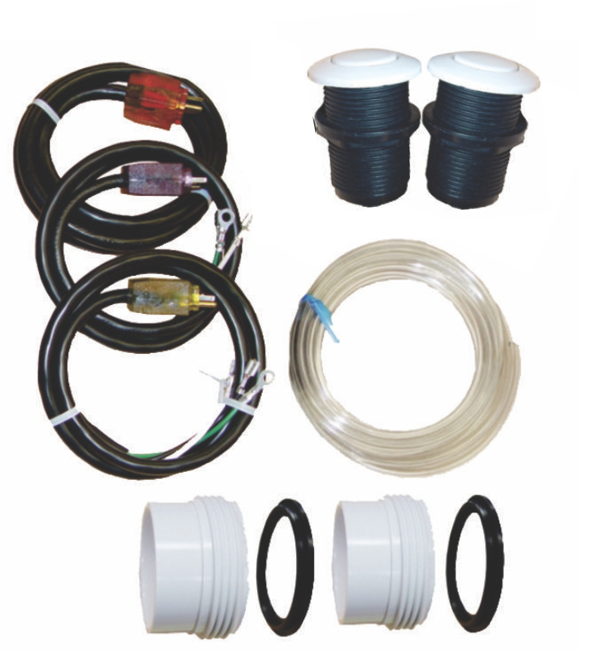

Kit Includes:

• Two Air buttons, 10ft Tubing
• Three 48-inch Lighted Smart Cords
• Pair of 2-inch Heater Tailpieces w/ O-Ring Gaskets
• Detailed Owners Manual
• Detailed Wiring Diagram

Click image to view larger picture.

Options:

• 120V/12V Light Kit w/Air Switch and Wall Fittings Options (Sold Separately. See P/N 40-150-1524)

NOTE:  Requires a pump to flow water through the heater with minimum 25 GPM and minimum 1.5 inch plumbing.

This is also a replacement option for the following part numbers: Y0HABDA-1200A10
