Aeware, Gecko IN.YJ-3 Controller Kit w/IN.K300-1OP, 4.0KW Remote Heater, BDLYJ3K300 (SPECIAL ORDER)

Aeware by Gecko IN.YJ-3 Controller Kit, aka YJ-Series, with Topside Panel IN.K300-1OP and a Remote 4.0KW Heater.  Setup to operate Pump1 (Dual Speed), Ozone and a 12V Light.  OEM part number BDLYJ3K300.

SPECIAL ORDER NOTES:  THIS ITEM IS A SPECIAL ORDER AND HAS AN ESTIMATED 2-10 BUSINESS DAYS LEAD TIME BEFORE SHIPPING.  SPECIAL ORDERS ARE NON-RETURNABLE AND CANNOT BE CANCELED ONCE THE ORDER IS PLACED.

SpaGuts P/N:  11-720-0003

KIT INCLUDES:

• IN.YJ-3 Controller, 0612-221041-431
• Heat.Wav for IN.YJ, 4.0KW, w/Sensors, 15 inch x 2.0 inch, 0613-421009
• IN.K300-1OP Topside Panel with Overlay, 4-Button, 10ft Cable, BDLK3001OP
• 1x 2-Speed, 4-Wire Amp Receptacle, 8 inch, 9920-401345
• 1x 2-Speed, 4-Wire Amp Cord, 8ft, 95100251
• 1x Light Cable with Socket, 8ft, 9920-400489
• 1x LED Light, White Wedge-T10, 12V, 246AA0064
• 1x Topside Cover (Adapter) Plate for IN.K300, 8.5 inch x 3.0 inch, 9917-10239
• TWO Flat Mounting Plates with Screws, 9920-101490
• Quick Start Card

INPUT CONNECTIONS:

• 110/220V 60Hz Power Supply (Neutral is Required)
• Pump 1 Circuit, 1 or 2-Speed, 110/220V, 15A Max
• Optional Circ Pump Circuit, 1-Speed, 110/220V, 2A Max
• Ozone Circuit, Dependent with Pump 1 Low Speed, 3A Max (Must be same voltage as Pump 1)
• Direct Output Circuit, 110V/220V, 10A Max (Constant Voltage)
• Keypad, C1
• Communication, CO
• Light, 12V, 1 Intensity, 0.5A Max

SYSTEM REQUIREMENTS:

• 220V Power requires 2 Hots, Neutral and Ground
• The 4.0KW Hi-Flo Heatwav Heater requires a Minimum of 18 GPM of Water Flow, and Minimum 1.5-inch Plumbing

Features:

• Advanced electronics!  Water Resistance!  (Upon proper installation, and a water-tight power supply clamp is used)
• In.put - New Input Terminal Bloc - In.put was designed to ease wire insertion (up to # 4 AWG) and connections.  Tighter input connection reduces heat generated for increased component lifetime.
• In.seal - Watertight Protection - In.seal provides extra level of protection against water infiltration.  Connectors and power box are designed to be watertight and no water can be in direct contact with electrical components.
• In.flo - Dry-Fire Protection - A new heater safety system located in the in.therm power box - an all-electronic dry-fire protection.
• In.t.cip - Water Temperature Algorithm - In.t.cip is an intelligent water temp. refresh algorithm that calculates optimal time to start pumps and get water temp. readings.  In.t.cip continuously readjusts heater start time.
• In.stik - Automated Software Upload - In.stik a pen drive with an in.link connector very similar to a USB memory stick.  It connects to in.ye and contains data to program or configure its system.  In.ye executes the data upload automatically.
• In.touch - Supports in.touch 2 WI-FI Interface, allowing you to use your favorite iOS device to communicate with your spa.
• Field-Serviceable Parts - The YJ Series provides easy access to the controller board for all maintenance and replacement requirements.
• UL Recognized for your safety
• 2-Year Limited Warranty

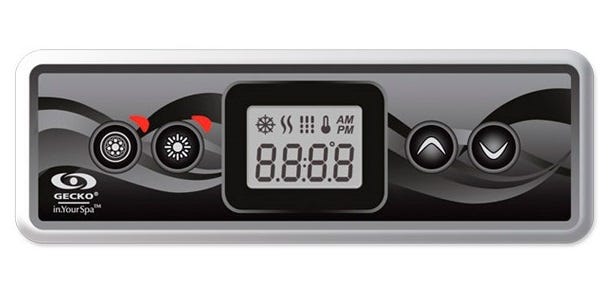

View of 4 button Digital Topside Panel. Click image to enlarge.

Dimensions (Approx.):

• Controller:  12.08 inch L x 7.38 inch H x 3.74 inch W
• Topside Panel:  6.25 inch L x 2.25 inch W
• Topside Cover Plate:  8.5 inch L x 3.5 inch W
• Heater:  15 inch L x 4.94 inch H x 3.92 inch W
• Heater Metal Housing:  15 in L x 2.0 in Diameter

WI-FI Optional (Sold Separately):

• iPhone App!  Control your spa from your iPhone, iPad, or iPod!

Add the optional IN.TOUCH 2 RF Interface Module, P/N 0608-521020, download one of the iPhone Apps, and use your iPhone, iPad, iPod or computer to control your Gecko IN.YE Controller remotely!  Also works with Android!  The Gecko IN.YE Controller we have in stock are pre-program with the software capable of WI-FI control.  Imagine the possibility of being able to monitor your spa and control it remotely within your WI-FI network with the Home App, or do it all remotely from across country with the World App using the internet.  The WI-FI App also allows you to set all your Economy and Filtration Cycles through your phone (iPod, iPad or computer), with precision that goes to the minutes!  Basically Amazing!!!

• (*iPhone, iPad, iPod and computer are not included)

This controller kit is also a replacement option for the following part numbers:  Gecko 0612-300001 Controller Kit, Gecko 0612-300002 Controller Kit, Gecko 3-72-7050 Controller Kit, Gecko 0612-221012 Control System, Gecko 3-72-7053 Control System, 58-337-1470 inyj Controller Kit, Gecko 0612-221002 Control System, Gecko 0612-221032-316 IN.YJ-2 Control System

The control system is compatible with the following parts: Gecko 0607-008039 IN.K300-1OP Topside Panel, Gecko 0607-008036 IN.K300-1OP Topside Panel, Gecko 0607-008010 IN.K200-1OP Topside Panel, Gecko 0613-421009 heatwave, Gecko 0613421009 heatwav, Gecko 0613-421009 heat.wav, Gecko 0613-421001 heat.wav, Gecko 0613421001 heatwav, Gecko 0613421001 heatwave, Gecko 0608-521020 IN.TOUCH 2
