Balboa EL2001 Mach 3 Control System, 4.0KW HTR, (No Topside or Cords), G4223

Balboa EL2001 Mach 3 Control System with 4.0KW 220V Incoloy 800 Heater. Topside Panel and Cords are Sold Separately. OEM part number G4223.

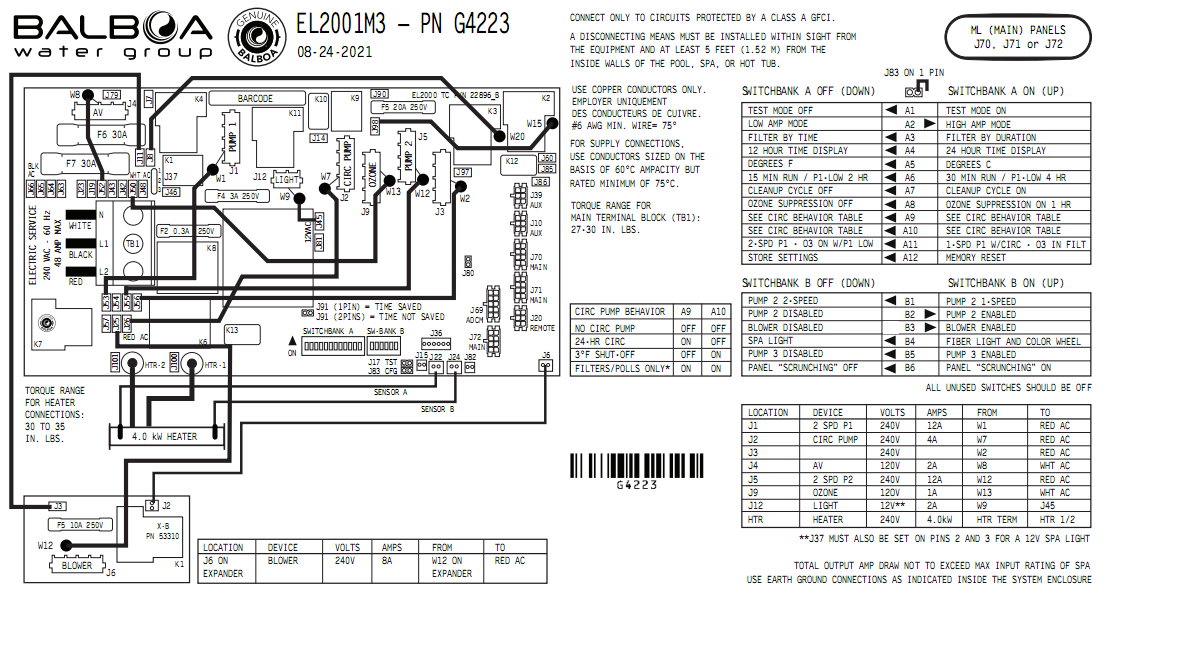

This control system operates on 220V 60Hz 4-Wire (Line 1, Line 2, Neutral and Ground). The EL2001M3 control system is equipped with M7 technology which allows the heater to be mounted either on the suction or discharge side of the pump. Field Configuration and Setup is required.

SpaGuts P/N: 11-175-4223

Features:

• Pump 1 circuit, two speed, 110/220V, 12A Max
• Pump 2 circuit, Single or Dual Speed, 110/220V, 12A Max (Dual Speed is only available if there is no blower)
• Pump 3 circuit, Single Speed, 110/220V, 12A Max
• Blower circuit, 1-speed, 110/220V, 8A Max (Available only if pump 2 is single speed)
• Circ Pump circuit, 110/220V, 4A Max (24Hr when activated, Requires 25 GPM. Available only if there is no Fiber Optics Light)
• Ozone circuit, 110/220V, 1A Max
• Audio/Video circuit, 110/220V, 2A Max (Constant Circuit)
• 12V Light circuit, OR 110V MoodEFX Light circuit, OR 110V FiberEFX Light circuit (2A Max)
• 4.0KW, 240V Flo-Thru Incoloy 800 High Flow heater with M7 technology
• Plug-N-Click Heater Cables
• Stainless steel heater housing
• No Pressure Switch. Heater can be installed on suction or discharge side of pump
• UL and ETL listed for your safety
• Freeze protection
• High-limit protection
• Filtration mode
• Economy Mode
• Persistent Memory
• Real Time Clock
• Pair of 2.0 inch Heater Tailpieces with O-Ring Gaskets
• 1-Year Limited Warranty

Dimensions (Approx):

• Controller: 12 inch L x 11 inch H x 4.5 inch W
• Heater: 15 inch L x 2 inch Diameter

This control system is compatible with the following Balboa topside panels (Sold Separately): 52654 ML900, 52649 ML700, 52684 ML400 Auxiliary, 55304 ML551, 53502 ML551, 55533 AX10

This control system is also a replacement option for the following control system part numbers: 53884-05, 10-175-3884, 55067-03, 3-70-0808, 55066-04, 58-138-2015, 58-138-2016, 53882-05, 53323, 54478-03, 10-175-4478

This control system is also a replacement option for the following circuit board: 54482-03, 53414
