Balboa VS500Z Single Pump Spa Controller Kit w/VL200 Topside, 5.5KW Heater

In stock
In stock
Special Price $469.95 Regular Price $579.95


  • REGULAR PRICE AT $579.95
  • SALES FROM 09/26/2023 TO 10/07/2023. WHILE SUPPLIES LAST!

This Balboa VS500Z Spa Controller Kit with 5.5KW Heater is field configurable. Internal component circuits can be setup to work with your existing pump and ozone. Replacement for the 54219-Z Balboa Spa Controller Retrofit Kit.

An option only available from SpaGuts, this VS Series is available Factory Configured to your exact specifications for $39.95 or as a Retrofit Kit that is easily field configured at the time of installation. Competitors only offer controllers as a Retrofit "do it yourself kits" without the time saving Factory Configuration optionally available by SpaGuts. Factory Configuration includes set-up and bench testing of Internal component circuits to work with your existing pump, ozone and circulation pump so you don't have to do any internal wiring or programming, making your controller plug and play right out of the box. Best value for most installers; saves time and prevents costly installation errors.

SpaGuts P/N: 11-200-4219

This controller operates on 110/220V (220V requires 4-wire service). The VS500Z controller is equipped with M7 technology which allows the heater to be mounted either on the suction or discharge side of the pump.

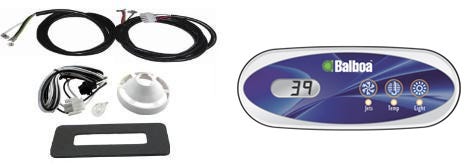

  • Balboa Control System, VS500Z, 5.5KW Heater
  • Mini Oval Topside Panel, VL200 Plus 3-BTN Overlay, 7ft Cable
  • Topside Cover Plate
  • Light Cable with Socket, 8ft
  • Light Bulb, Clear, 12V 12W
  • One Dual-Speed Amp Cord, 4-Wire, 4ft
  • Two Single-Speed Amp Cord, 3-Wire, 4ft
  • Pair of 2.0-inch Heater Tailpieces with O-Ring Gaskets
  • Reference Card (Operations Instruction)


  • One Jet Pump circuit, two speeds, 110/220V, 12A Max
  • Circ Pump circuit, 110/220V, 4A Max (24Hr when activated, Requires 25 GPM)
  • Ozone circuit, 110/220V, 1A Max
  • Audio/Video circuit, 110/220V, 2A Max (Constant Voltage)
  • Light circuit, 12V, 1A Max
  • 1.4/5.5KW, 120/240V Flo-Thru Incoloy High Flow heater with M7 technology
  • Stainless steel heater housing
  • No Pressure Switch. Heater can be installed on suction or discharge side of pump
  • UL Recognized for your safety
  • Freeze protection
  • High-limit protection
  • Filtration mode
  • Economy Mode
  • 1-Year Limited (Extended Warranty Option is available upon ordering)

Controller Dimensions are 12 inch L x 11 inch H x 4.5 inch W (approx)

Heater Dimensions are 15 inch L x 2.0 inch Diameter (approx)

Topside Panel Dimensions are 4.25 inch L x 1.5 inch W (approx)

Topside Cover Plate Dimensions are 8.5 inch x 4.0 inch (approx)

Accessorry Bag Contents:


Also see the SpaGuts brand VS500Z Single Pump Spa Controller w/ Topside, 54803. It is built by Balboa and offers a better value with an upgraded topside and a 2 year warranty!

This controller kit is a also a replacement option for the following part numbers: 54368hc1vs500z, 54368-01, 54368HC3, 54368HC2, 54368HC1, 3-70-0927HQ, 3-70-0823, CS6100B-U-WP, 58-138-2056, 55263-02 (VS612R1 System), 53551 or GVS500R1A (New System will Not support Silent Sentry Lights), Leisure Bay VH-V120R-CCAJ System (Re-plumbing Required to New Heater; Possible Topside Retrofitting), Premium Leisure 55940 System or 55941 Board (Chip PVS500ZR1A), EP6500, 50-54219-Z, 10-175-4219
