Balboa VS501Z Spa Controller Kit w/VL200 Topside, 5.5KW Heater (SEE REPLACEMENT BELOW)

Balboa VS501Z Spa Controller Kit w/VL200 Topside, 5.5KW Heater (SEE REPLACEMENT BELOW)

Be the first to review this product

Out of stock

Discontinued

SKU

237A

$549.95

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

THIS ITEM IS NO LONGER AVAILABLE. IT HAS BECOME OBSOLETED BY THE MANUFACTURER. CONTACT US IF YOU ARE INTERESTED IN PURCHASING. QUANTITY ARE LIMITED TO STOCK.

ALSO SEE BELOW ALTERNATIVE REPLACEMENT OPTIONS TO RETROFIT:

OPTION 1: SEE LINK TO THE 404A SPAGUTS SGBP100 SPA CONTROLLER KIT WITH FIXED HEATER AS AN ALTERNATIVE REPLACEMENT OPTION TO RETROFIT.

OPTION 2: SEE LINK TO THE 413A BALBOA BP100G2 SPA CONTROLLER KIT WITH FIXED HEATER AS AN ALTERNATIVE REPLACEMENT OPTION TO RETROFIT.

OPTION 3: SEE LINK TO THE 423A BALBOA BP100G2 SPA CONTROLLER KIT WITH REMOTE HEATER AS AN ALTERNATIVE REPLACEMENT OPTION TO RETROFIT.

This Balboa Spa Controller VS501Z Kit with 5.5KW Heater is field configurable. Internal component circuits can be setup to work with your existing pump, blower and ozone. Replacement for the 54220-Z Balboa Spa Controller Retrofit Kit.

An option only available from SpaGuts, this VS Series is available Factory Configured to your exact specifications for $39.95 or as a Retrofit Kit that is easily field configured at the time of installation. Competitors only offer controllers as a Retrofit "do it yourself kits" without the time saving Factory Configuration optionally available by SpaGuts. Factory Configuration includes set-up and bench testing of Internal component circuits to work with your existing pumps, blower, ozone and circulation pump so you don't have to do any internal wiring or programming, making your controller plug and play right out of the box. Best value for most installers; saves time and prevents costly installation errors.

SpaGuts P/N: 11-200-4220

This controller operates on 110/220V (220V requires 4-wire service). The VS501Z controller is equipped with M7 technology which allows the heater to be mounted either on the suction or discharge side of the pump.

Contents:

Balboa Control System, VS501Z, 5.5KW Heater
Mini Oval Topside Panel, VL200 Plus 4-BTN Overlay, 7ft Cable
Topside Cover Plate
Light Cable with Socket, 8ft
Light Bulb, Clear, 12V 7.16W, #918, 65-350-0918
One Dual-Speed Amp Cord, 4-Wire, 4ft
Two Single-Speed Amp Cord, 3-Wire, 4ft
Pair of 2.0-inch Heater Tailpieces with O-Ring Gaskets
Reference Card (Operations Instruction)

Features:

Pump 1 Circuit, 2-speed, 110/220V, 12A Max
Blower or Pump 2 Circuit, 1-speed, 110/220V, 12A Max*
Circ Pump Circuit, 110/220V, 2A Max (24Hr when activated, Requires 25 GPM)
Ozone circuit, 110/220V, 2A Max
Audio/Video circuit, 110/220V, 2A Max (Constant Circuit)
Light Circuit, 12V, 1A Max
5.5KW 240V Flo-Thru Incoloy High Flow Heater with M7 Technology
Stainless Steel Heater Housing
No Pressure Switch. Heater can be installed on suction or discharge side of pump
UL Recognized for your safety
Freeze protection
High-limit protection
Filtration mode
Economy Mode
1-Year Limited Warranty (Extended Warranty Option is available upon ordering)

*NOTE: If using the Blower Circuit for Pump 2 on 220V Power Supply, make sure to convert the Black Jumper Wire from W3 to J62 for 12A Max (See Wiring Diagram).

Controller Dimensions are 12 inch L x 11 inch H x 4.5 inch W (approx)

Heater Dimensions are 15 inch L x 2.0 inch Diameter (approx)

Topside Panel Dimensions are 4.25 inch L x 1.5 inch W (approx)

Topside Cover Plate Dimensions are 8.5 inch x 4.0 inch (approx)

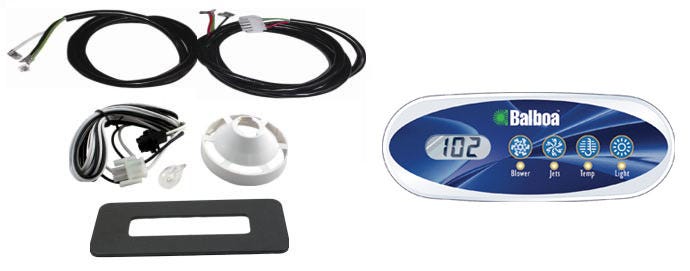

Accessorry Bag Contents:

Compatible Balboa Topside Panels: 52144 (VL200), 53850 (VL404), 52312 (VL200), 55050 (VL260), 53645 (VL260), 55559 (VL260), 54754 (VL260), 55049 (VL260), 55051 (VL260), 53566 (VL260), 53777 (VL260), 51223 (VL404), 51248 (VL404), 53646 (VL240), 53565 (VL240), 55129 (VL400), 50176 (VL400), 54094 (VL401), 54251 (VL401), 54107 (VL402), 54093 (VL402), 54104 (VL403), 51676 (VL403), 55349 (VL406T), 55570 (VL406T)

This controller kit is also a replacement option for the following part numbers: 54379-03 (Control System Only, 4.0KW), 54356-03 (Control System Only, 5.5KW), 53267 (Control System Only, 5.5KW), 54356hc1vs501z (Control System Only, 5.5KW), 55860 (Retrofit Topside Panel, 5.5KW), EP6551-2, 51-54356-Z (Control System Only, 5.5KW), G5152 (Control System Only, 5.5KW), G4152 (Control System Only, 4.0KW), 50-54220-Z, 10-175-2001
