Balboa VS510SZ Spa Controller Kit w/ VL701S Topside, 5.5KW Heater (SEE REPLACEMENT BELOW)

THIS ITEM IS NO LONGER AVAILABLE. IT HAS BECOME OBSOLETED BY THE MANUFACTURER.

SEE LINKS BELOW TO ALTERNATIVE REPLACEMENT OPTIONS. YOU MAY ALSO CONTACT US IF YOU NEED HELP TO DETERMINE ALTERNATIVE REPLACEMENTS.

OPTION 1:  SEE LINK TO THE 11-200-6407 BALBOA VS520DZ SPA CONTROLLER KIT WITH VL801D TOPSIDE AS AN ALTERNATIVE REPLACEMENT OPTION.

OPTION 2:  SEE LINK TO THE 405A SPAGUTS SGBP7 SPA CONTROLLER KIT WITH TP600 TOPSIDE AS AN ALTERNATIVE REPLACEMENT OPTION TO RETROFIT.

OPTION 3:  SEE LINK TO THE 427A SPAGUTS SGBP7 SPA CONTROLLER KIT WITH TP500 TOPSIDE AS AN ALTERNATIVE REPLACEMENT OPTION TO RETROFIT.

OPTION 4:  SEE LINK TO THE 11-200-5356 BALBOA BP7 SPA CONTROLLER KIT WITH TP600 TOPSIDE AS AN ALTERNATIVE REPLACEMENT OPTION TO RETROFIT.

OPTION 5:  SEE LINK TO THE 419A BALBOA BP7 SPA CONTROLLER KIT WITH TP700 TOPSIDE AS AN ALTERNATIVE REPLACEMENT OPTION TO RETROFIT.

The Balboa Spa Controller VS510SZ Kit is field configurable. Internal component circuits can be setup to work with your existing pumps, blower and ozone. Replacement for the 54218-Z Balboa Spa Controller Retrofit Kit.

An option only available from SpaGuts, this VS Series is available Factory Configured to your exact specifications for only $39.95 or as a Retrofit Kit that is easily field configured at the time of installation. Competitors only offer controllers as a Retrofit "do it yourself kits" without the time saving Factory Configuration optionally available by SpaGuts. Factory Configuration includes set-up and bench testing of Internal component circuits to work with your existing pumps, blower, ozone and circulation pump so you don't have to do any internal wiring or programming, making your controller plug and play right out of the box. Best value for most installers; saves time and prevents costly installation errors.

SpaGuts P/N: 11-200-4218

This controller operates on 220V (requires 4-wire service). The VS510SZ controller is equipped with M7 technology which allows the heater to be mounted either on the suction or discharge side of the pump.

Features:

• Pump 1 circuit, Two speed, 110/220V, 12A Max
• Pump 2 circuit, One speed, 110/220V, 12A Max
• Blower or Pump 3 circuit, 1-speed, 110/220V, 10A Max
• Circ Pump circuit, 110/220V, 4A Max (24Hr when activated, Requires 25 GPM)
• Ozone circuit, 110/220V, 1A Max
• Audio/Video circuit, 110/220V, 2A Max (Constant Circuit)
• 12V Light circuit, 1A Max
• 5.5KW, 240V Flo-Thru Incoloy High Flow heater with M7 technology
• Stainless steel heater housing
• No Pressure Switch. Heater can be installed on suction or
discharge side of pump
• UL Recognized for your safety
• Freeze protection
• High-limit protection
• Filtration mode
• Economy Mode
• 1-Year Limited Warranty (Extended Warranty Option is available upon ordering)

Kit Includes:

• Balboa VS510SZ Control System
• Balboa Serial Standard Topside Panel (No Overlay)
• Balboa Topside Overlay, Serial Standard, 7-Button
• Topside Cover Plate
• Pair of 2.0 inch Heater Tailpieces with O-Ring Gaskets
• One Dual Speed Amp Cords, 4-Wire, 48 inch, 15-150-3060
• Three Single Speed Amp Cords, 3-Wire, 48 inch, 15-150-0024
• Light Cable Harness with Socket, 2-Pin Amp Plug, 8ft, 40-150-1515
• Light Bulb, Clear, 7.16W, #918, 65-350-0918

Dimensions (Approx.):

• Controller: 12 inch L x 11 inch H x 4.5 inch W
• Heater: 15 inch L x 2 inch Diameter
• Topside Panel: 7.25 inch L x 3.25 inch W
• Topside Cover Plate: 8.5 inch L x 3.5 inch W

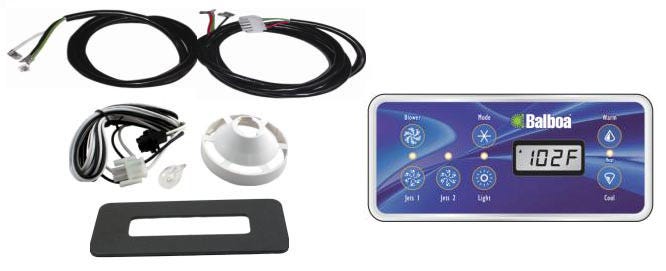

Accessorry Bag Contents:

This controller kit is also a replacement option for the following control systems: 54218-Z, 54371HC1, 54371-01, 54344-01, 58-138-2050, BAL54218, 9790-010, 3-70-0803, 3-70-0931HQ, CS6230B-UZ-WP, 54371HC3, KT-UNIVCC, 54757 (model K211D4K, 4.0KW), 55196 or GSV500SZ (New System will Not support Silent Sentry Lights), 53600-02 (VS510S), EP6551-2-3 controller, 54559-02 or G4154 Control System (Plug-N-Click 4.0KW Heater Version), 54371-03 or G5154 Control System (Plug-N-Click 5.5KW Heater Version), 326A2
