Hydro Quip Outdoor Series Electronic Spa Equip Pack, Balboa, 2.0HP Pump, Blower, 11KW, ES8850-A (SPECIAL ORDER)

Hydro Quip's outdoor rated Electronic Spa Equipment Pack with 11.0KW Heater, powered by Balboa, 2.0HP Pool Pump, 1.5HP Blower, Wifi Enabled, and TP600 Topside Panel, model ES8850-A.  Equipped with M7 Technology.  The controller will operate up to 3 pumps and a blower.  This Electronic Spa Equipment Pack is designed to be mounted outdoor in the elements.  With the Pool Pump, it can also be mounted at or above the water level.  The controller and blower are housed in a weather tight metal box.  The metal box is made of strong cold-rolled steel and triple powder coated for maximum protection.  This Spa Equipment Pack will be shipping as a "FIELD ASSEMBLY KIT".

SPECIAL ORDER NOTES: THIS ITEM IS A SPECIAL ORDER AND HAS AN ESTIMATED 10-25 BUSINESS DAYS LEAD TIME BEFORE SHIPPING. SPECIAL ORDERS ARE NON-RETURNABLE AND CANNOT BE CANCELED ONCE THE ORDER IS PLACED.

SpaGuts P/N:  10-150-8851

Electrical Rating:

• 220V 60Hz Single Phase
• 110/220V Component Circuits, 30-40A (40/50A Service Required)
• 220V 11KW Heater, 46A (Additional 60A Service Required)

Standard Features:

• BP2000G1 Balboa Platform
• Wifi Enabled
• M7 Technology
• Topside Panel, TP600 Model, with 7ft cord, 50335 (Water Resistance)
• 2.0HP 220V 2-Speed Pool Pump (Set As Primary Pump. Pump Model and Brand Varies Upon Avalability)
• 1.5HP Blower, 1-speed
• Pump 2 circuit only, 1 or 2-speed, 110/220V, 13A Max
• Pump 3 circuit only, 1-speed, 110/220V, 13A Max, Ready (*Requires TP800 or TP900 Topside Panel, Sold Separately)
• Ozone circuit only, 110/220V, 2A Max
• Auxiliary circuit only, 110/220V constant, 5A Max
• 12V Light circuit only, 1A Max
• Smart-Freeze Control
• Hi-Limit Control
• Economy Mode
• Sleep Mode
• Timed Filtration
• Stainless Steel Heater Housing with 11KW Heater, 220V, (requires 32 GPM Water Flow)
• Triple Powder Coated metal housing that prevents rust
• 2-Year Manufacturer's Limited Warranty

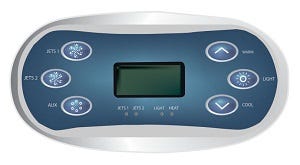

Topside Panel, TP600 Model, with 7ft cord, 50335:

Installation Kit (Included):

• 50ft Topside Extension Cord, 25662-50
• Elbow Fitting from Pump to Heater (UNGLUED)
• Pump Unions
• Heater Unions
• Pair of 2.0 inch O-Rings and O-Ring Gaskets
• Skid Base
• Bolts and Screws

Available Options (SOLD SEPARATELY):

• Auxiliary Topside Panel, Ax40, 52678 (18ft cord, no display)
• Auxiliary Single Button Topside Panel, AX10A3, 55533 (18ft cord, no display, for Pump 3 option)
• Topside Extension Cord, 100ft, 25662-100

Contact SpaGuts sales for the above options if interested.

Dimensions (Approx.):

• Equipment: 36 inch W x 26 inch H x 18 inch D
• Heater: 19.25 inch L x 2 inch Diameter
• Topside Panel: 7.1 inch L x 3.5 inch W

NOTE 1:  THIS SPA EQUIPMENT PACK WILL BE SHIPPING AS A "FIELD ASSEMBLY KIT".  THE EQUIPMENT WILL BE SENT LOOSE AND UNCONFIGURED FOR FIELD SETUP, PROGRAMMING, WIRING, MOUNTING AND PLUMBING BY YOUR INSTALLER.

NOTE 2:  COMPONENT CORDS ARE NOT INCLUDED.  FOR SPA COMPONENTS WIRING, "UL" REQUIRES A LICENSED ELECTRICIAN TO RUN ELECTRICAL LINES THROUGH OUTDOOR APPROVED CONDUITS TO BE HARD WIRED INTO THE CONTROLLER.

NOTE 3:  THIS CONTROLLER IS NOT CONFIGURED TO HANDLE A SWIM SPA PUMP THAT IS RATED MORE THAN 13A 220V.  PLEASE CONTACT SPAGUTS SALES FOR MORE INFORMATION IF INTERESTED IN A CONTROLLER FOR HIGHER AMPERAGE SWIM SPA PUMPS.

NOTE 4:  If a Spa Equipment Pack is needed with a Fireman Switch to activate a Gas Heater, contact us for pricing of models ES8850-G or ES8850-H.  If a Spa Equipment Pack is needed with a 2.0HP Pump and 11KW Heater, contact us for pricing of the models ES8850-B.

WIFI Optional (Sold Separately):

• iPhone App! Control your spa from your iPhone, iPad, or iPod!

Add the optional Balboa Wi-Fi Module, 50350, download one of the iPhone Apps, and use your iPhone, iPad, iPod or computer to control your Hydro Quip ES8000 Series Model Controller remotely!  Also works with Android!  The Hydro Quip ES8000 Series Model Controller are pre-program with the software capable of WIFI control.  Imagine the possibility of being able to monitor your spa and control it remotely within your wifi network with the Home App, or do it all remotely from across country with the World App using the internet.  Basically Amazing!!!

• (*iPhone, iPad, iPod and computer are not included)

This Spa Equipment Pack is also a replacement option for the following part numbers:  Hydro Quip ES8000 Series, ES8650-A, ES8750-A, K1G60DA-FGTWML0, ES8800-11
