Pure HEAT Bath Heater Kit, By HydroQuip, Inline, Vacuum, 1.5KW, 110V, 5.5 in. x 1.5 in. (SPECIAL ORDER)

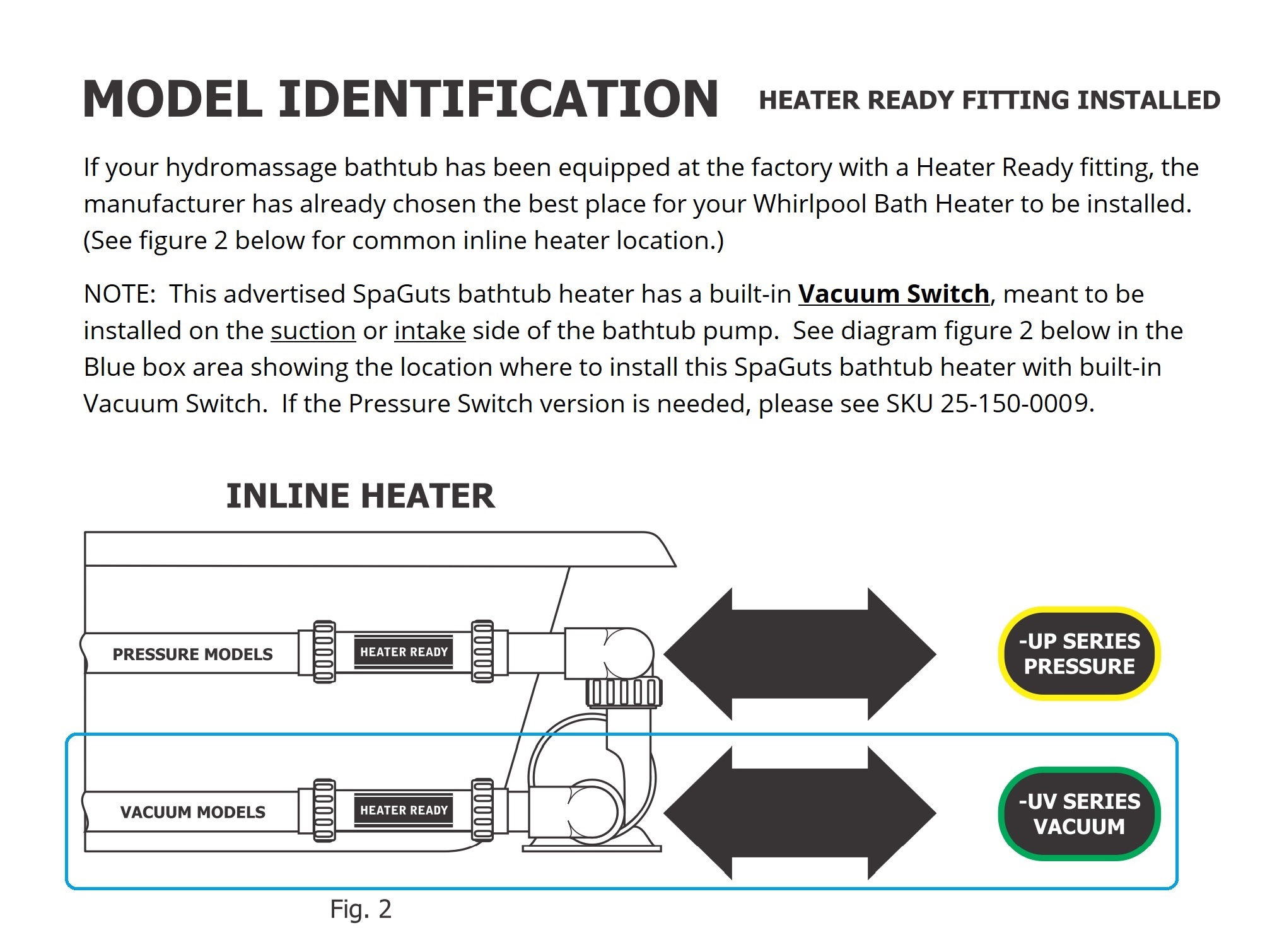

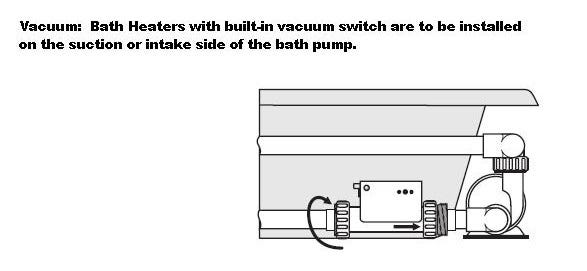

Pure HEAT brand Bath Heater Kit, by HydroQuip, rated 1.5KW 110V. This is the "Short Version" 5.5 x 1.5 inch in-line style bathtub heater with built-in "VACUUM" switch, which MUST be installed on the "SUCTION" end of your bathtub pump. OEM number is PH101-15UV-S.

NOTE: This bath heater is designed to maintain the current bath water temperature in the tub, and is not meant to heat water from cold to hot.  Not for use in a Spa.

SPECIAL ORDER NOTES: THIS ITEM IS A SPECIAL ORDER AND HAS AN ESTIMATED 2-5 BUSINESS DAYS LEAD TIME BEFORE SHIPPING. SPECIAL ORDERS ARE NON-RETURNABLE AND CANNOT BE CANCELED ONCE THE ORDER IS PLACED.

This bath heater is normally meant for use on 1.5 inch pvc plumbing, but can also be used on 1.0 inch pvc plumbing when using the fittings that are provided. Inside diameter is approximately 2.375 inch for the black heater split nuts.

SpaGuts P/N: 25-150-0019

Features

• Stainless Steel 5.5 inch x 1.5 inch in-line heater
• 1.5kw 110V Incoloy heater element
• Built-in "Vacuum" switch to activate heating
• Automatic smart thermostat (104 degrees F limit)
• Reversible mounting
• Heater on light
• Hi-limit protection
• 1.5 inch and 1.0 inch pvc pipe fittings included
• Pair of 1.5 inch Heater O-Ring Gaskets included
• 110V 60Hz 3ft NEMA cord
• Copper Bonding Wire included, 36 inch
• Installation and Operation Manual
• 1-year limited warranty
• UL Recognized for safety standards



*NOTE that dimensions are approximate.

The bath heater is also a replacement option for the following model numbers: 26-0014M-RA, CT100, C3B94P1-E012JUZ

This bath heater is also a replacement option for the following brand bath heaters: American Standard, Safe-T-Heater, Hydro-Quip Compact Series Whirlpool Bath Heater, Jacuzzi RapidHeat, Pure Heat, Eljer

The use of a Pure HEAT brand bath heater helps to eliminate the rapid cooling that occurs during the operation of your whirlpool bath, providing you a continuous source of hot water and extending the pleasure of your jetted bath experience. This bath heater is normally for use in jetted bathtubs up to 70 gallons. For more information, please see Installation Instructions in the installation tab above. For larger bathtubs and specific heater size requirements, refer to your jetted bathtub manufacturer for their recommendation.

NOTE: This bath heater is designed to maintain the current bath water temperature in the tub, and is not meant to heat water from cold to hot.  Not for use in a Spa.
