Pure HEAT Bath Heater Kit, by HydroQuip, Pressure, 650W, 110V, 7.0 in. x 1.5 in. (SPECIAL ORDER)

Pure HEAT brand Bath Heater Kit, by HydroQuip, rated 650W 110V. This is the 7.0 inch x 1.5 inch in-line style bathtub heater with built-in pressure switch, which MUST be installed on the pressure end of your bathtub pump. OEM number is PH101-65UP.

SPECIAL ORDER NOTES: THIS ITEM IS A SPECIAL ORDER AND HAS AN ESTIMATED 2-5 BUSINESS DAYS LEAD TIME BEFORE SHIPPING. SPECIAL ORDERS ARE NON-RETURNABLE AND CANNOT BE CANCELED ONCE THE ORDER IS PLACED.

This bath heater is normally meant for use on 1.5 inch pvc plumbing, but can also be used on 1.0 inch and 0.75 inch pvc plumbing when using the fittings that are provided. Inside diameter is approximately 2.375 inch for the black heater split nuts.

SpaGuts P/N: 25-150-0021

Features

• Stainless Steel 7.0 inch x 1.5 inch in-line heater
• 650W 110V Incoloy heater element
• Built-in Pressure Switch to activate heating
• Automatic smart thermostat (104 degrees F limit)
• Reversible mounting
• Heater on light
• Hi-limit protection
• 1.5 inch, 1.0 inch and 3/4 inch pvc pipe fittings included
• Pair of 1.5 inch Heater O-Ring Gaskets included
• 120V 60Hz 3ft NEMA cord with Piggy Back Style Plug
• Copper Bonding Wire included
• Installation and Operation Manual
• 1-year limited warranty
• UL Recognized for safety standards

NOTE 1:  Dimensions are approximate.

NOTE 2: This bath heater is designed to maintain the current bath water temperature in the tub, and is not meant to heat water from cold to hot.

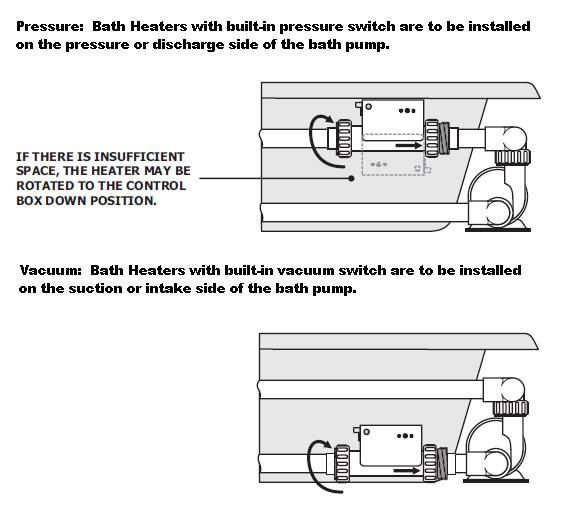

Pressure: This bath heater is meant for installation on the pressure side of your bathtub pump, which has a built-in pressure switch. If you need this same style bathtub heater to be installed on the suction side of your bathtub pump, see link to the Vacuum Switch Version.

The Pressure Switch model bath heater is also a replacement option for the following model numbers: C3J83P1-D01EJUZ, pureheat PH101-65UP, CT100

This bath heater is also a replacement option for the following brand bath heaters: American Standard, Safe-T-Heater, Hydro-Quip Compact Series Whirlpool Bath Heater, Jacuzzi RapidHeat, Pure Heat, Elger

The use of a HydroQuip brand bath heater helps to eliminate the rapid cooling that occurs during the operation of your whirlpool bath, providing you a continuous source of hot water and extending the pleasure of your jetted bath experience. This bath heater is normally for use in jetted bathtubs up to 70 gallons. For more information, please see Installation Instructions in the installation tab above. For larger bathtubs and specific heater size requirements, refer to your jetted bathtub manufacturer for their recommendation.
