SpaGuts brand Spa Controller BP2000G1 Kit, Wifi Enabled, is powered by Balboa Water Group, but offers an upgraded 2-year warranty instead of the standard 1-year warranty provided on Balboa labeled components. This kit includes the Square SpaTouch 1 Model topside panel, Touch Screen with Colored Display, Menu-driven. The SpaGuts branded products offer a better value and a longer warranty than all competing brands.
SPECIAL ORDER NOTES: THIS ITEM IS A SPECIAL ORDER AND HAS AN ESTIMATED 2-10 BUSINESS DAYS LEAD TIME BEFORE SHIPPING. SPECIAL ORDERS ARE NON-RETURNABLE AND CANNOT BE CANCELED ONCE THE ORDER IS PLACED.
An option only available from SpaGuts, the BP2000G1 is available Factory Configured to your exact specifications for $54.95 or as a Retrofit Kit that is easily field configured at the time of installation. Competitors only offer controllers as a Retrofit "do it yourself kits" without the time saving Factory Configuration optionally available by SpaGuts. Factory Configuration includes set-up and bench testing of Internal component circuits to work with your existing pumps, blower (or pump 4), circulation pump and ozone, so you don't have to do any internal wiring, making your controller plug and play right out of the box. Best value for most installers; saves time and prevents costly installation errors. Once the order is placed with the Factory Configuration Fee, we will contact you to collect information that is required to setup the controller.
This controller requires 220V 60Hz Power Supply (220V requires 4-wire service, Neutral is Required). The SpaGuts brand BP2000G1 controller is equipped with Balboa Water Group's patented M7 and M8 technology which allows the heater to be mounted either on the suction or discharge side of the pump for simplified installation. M7 and M8 Technology also completely eliminates the pressure switch which otherwise requires occasional manual adjustment making the SpaGuts BP2000G1 an ideal choice if a pressure switch is not necessary on your spa configuration.
SpaGuts OEM P/N: 11-200-2020
*NOTE: If setting up Pump 2 or Pump 3 for 2-Speed operation, the Amp Cord 4-Wire will need to be purchased separately. Please see the 15-150-3060 4ft Amp Cord, and the 15-150-3061 8ft Amp Cord.

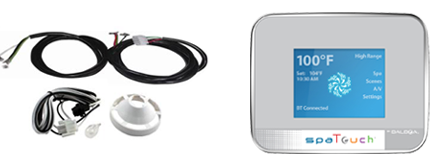

Accessory Bag Contents:
WIFI Optional (Sold Separately):
Add the optional Balboa Wi-Fi Module, 50350, download one of the iPhone Apps, and use your iPhone, iPad, iPod or computer to control your SpaGuts BP Model Controller remotely! Also works with Android! The SpaGuts BP Model Controller we have in stock are pre-program with the software capable of WIFI control. Imagine the possibility of being able to monitor your spa and control it remotely within your wifi network with the Home App, or do it all remotely from across country with the World App using the internet. Basically Amazing!!!
This controller kit is compatible with the following parts: Balboa AX10, 52803 AX10A1 (No Overlay), 52804 AX10A2 (No Overlay), 52805 AX10A3 (No Overlay), 52806 AX10A4 (No Overlay), 55533 (Jets3), 50185 (Jets3), 54709 (Jets3), 55532 (Jets4), 54710 (Jets4), 55936 (Jets5), 52683 (Jets1), 59097 (Expander Board), 56246 (Main Board)
This controller kit is also a replacement option for the following part numbers: 10-175-4860, 54897, 54860, 56377, 10-175-6377, 54857, 54835, 10-175-4835, 56755, 56582, 52764, 56583 BP501G3 (This system has an 825 Incoloy Heater), 56583 BP501G3 (This system has a Titanium Heater), 56335 MQBP20 (This system has an 800 Incoloy 4.0kW Heater), Maax 110339, G5361 Balboa BP7 System
