SpaGuts BP2000G1 Spa Controller Kit w/ Topside SpaTouch-1 Trapezoid, Wifi Enabled, 5.5KW HTR

In stock
In stock
SKU
11-200-2010
$779.95

SpaGuts brand Spa Controller BP2000G1 Kit, Wifi Enabled, is powered by Balboa Water Group, but offers an upgraded 2-year warranty instead of the standard 1-year warranty provided on Balboa labeled components. This kit includes the Trapezoid SpaTouch 1 Model topside panel, Touch Screen with Colored Display. The Spa Guts branded products offer a better value and a longer warranty than all competing brands.

An option only available from SpaGuts, the BP2000G1 is available Factory Configured to your exact specifications or as a Retrofit Kit that is easily field configured at the time of installation. Competitors only offer controllers as a Retrofit "do it yourself kits" without the time saving Factory Configuration optionally available by SpaGuts. Factory Configuration includes set-up and bench testing of Internal component circuits to work with your existing pumps, blower (or pump 4), circulation pump and ozone, so you don't have to do any internal wiring, making your controller plug and play right out of the box. Best value for most installers; saves time and prevents costly installation errors. Factory Configuration Fee of $39.95 may be requested when placing the order over the phone.

This controller requires 220V 60Hz Power Supply (220V requires 4-wire service, Neutral is Required). The SpaGuts brand BP2000G1 controller is equipped with Balboa Water Group's patented M7 and M8 technology which allows the heater to be mounted either on the suction or discharge side of the pump for simplified installation. M7 and M8 Technology also completely eliminates the pressure switch which otherwise requires occasional manual adjustment making the SpaGuts BP2000G1 an ideal choice if a pressure switch is not necessary on your spa configuration.

SpaGuts OEM P/N:  11-200-2010

Features:

  • Exclusive QR Code for Quick Access to Wiring Diagram, Operation/Installation/Technical Information
  • Exclusive SpaGuts brand Control System, BP2000G1, 56777
  • Trapezoid SpaTouch 1 Model Topside Panel, Touch Screen with Colored Display, with 7ft cord, 50585-05
  • Exclusive 2-Year Limited Warranty (Extended Warranty Option is available upon ordering)
  • Program Setting from Topside Panel
  • Wifi Enabled (Wifi Module sold separately)
  • Pump 1 circuit, 2 speed, 110/220V, 12A Max
  • Pump 2 circuit, 1 or 2 speed, 110/220V, 12A Max
  • Pump 3 circuit, 1 or 2 speed, 110/220V, 12A Max
  • Circ Pump circuit, 1 speed, 110/220V, 2A Max (24Hr when activated, Requires 25 GPM)
  • Ozone circuit, 110/220V, 1A Max
  • Audio/Video circuit, 110/220V, 3A Max (Constant Circuit)
  • Light circuit, 10V, 2A Max
  • Light Cable with Socket and Reflector, 8ft
  • Clear Light Bulb, 912 Model, 12W
  • 5.5KW, 240V Flo-Thru Incoloy High Flow heater with M7 and M8 Technology
  • Stainless steel heater housing
  • No Pressure Switch. Heater can be installed on suction or discharge side of pump
  • Quick Disconnect Heater Cable
  • ONE 4ft 2-Speed Amp Cord, 4-Wire
  • TWO 4ft 1-Speed Amp Cords, 3-Wire
  • Y-Cable, 25657
  • UL Recognized (cURus) and ETL listed for your safety
  • Freeze protection
  • High-limit protection
  • Filtration mode
  • Economy Mode
  • Tech Book (Only Available Online. See Tabs Above)

*NOTE: If setting up Pump 2 or Pump 3 for 2-Speed operation, the Amp Cord 4-Wire will need to be purchased separately. Please see the 15-150-3060 4ft Amp Cord, and the 15-150-3061 8ft Amp Cord.

Dimensions (Approx.):

  • Controller: 13.0 inch L x 12.0 inch H x 4.8 inch W
  • Heater: 15 inch L x 2.0 inch W (2.25 Hole Diameter; 19.5 inch L x 3.92 inch Diameter w/Tailpieces and Split Nuts Installed)
  • Topside Panel: 7.75 inch L (Bottom Portion) x 6.5 inch L (Top Portion) x 4.75 inch H x 1.75 inch W

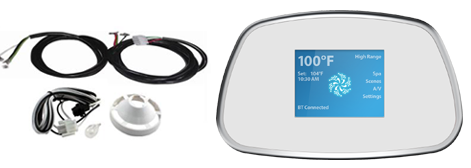

Accessorry Bag Contents:
Access_Bag_ST1-Trap_S.png'

WIFI Optional (Sold Separately):

Add the optional Balboa Wi-Fi Module, 50350, download one of the iPhone Apps, and use your iPhone, iPad, iPod or computer to control your SpaGuts BP Model Controller remotely!  Also works with Android!  The SpaGuts BP Model Controller we have in stock are pre-program with the software capable of WIFI control.  Imagine the possibility of being able to monitor your spa andcontrol it remotely within in your wifi network with the Home App, or do it all remotely from across country with the World App using the internet.  Basically Amazing!!!

Wifi-Iphone-Ipad.png'

  • (*iPhone, iPad, iPod and computer are not included)

This controller kit is compatible with the following parts:  Balboa AX10, 52803 AX10A1 (No Overlay), 52804 AX10A2 (No Overlay), 52805 AX10A3 (No Overlay), 52806 AX10A4 (No Overlay), 55533 (Jets3), 50185 (Jets3),54709 (Jets3), 55532 (Jets4), 54710 (Jets4),55936 (Jets5), 52683 (Jets1), 59097 (Expander Board), 56246 (Main Board)

This controller kit is also a replacement option for the following part numbers:  10-175-4860, 54897, 54860, 56377, 10-175-6377, 54857, 54835, 10-175-4835, 56755, 56582, 52764, 56583 BP501G3 (This system has an 825 Incoloy Heater), 56583 BP501G3 (This system has a Titanium Heater), 56335 MQBP20 (This system has a 800 Incoloy 4.0kW Heater), Maax 110339, G5361 Balboa BP7 System
