SpaGuts CS Series Pneumatic Spa Controller Kit w/Topside, 5.5KW HTR

Pneumatic controllers have been around since the first home spas and continue to remain popular due to their lower cost, simplicity, and reliability. This is a universal spa controller that can be configured for 220V or 110V.

The SpaGuts CS Series Pneumatic Spa Controller is available in the following configurations:

• 220 or 110 volts, 60Hz (Neutral Required)
• Single or dual motor circuits
• 1.5 inch or 2.0 inch pipe fittings

Other configurations are possible. Contact us to discuss your needs.

Features

Installation and Performance Features

• Compact size. Controller Dimensions are (Approx): 12.5 inches long x 10.25 inches high x 4.13 inches deep.
• Heater Dimensions are (Approx): 15 inches long x 2 inches in diameter
• Foot mount brackets for simplified installation and Easy Heater Removal
• 1.4/5.5KW, 120/240V flo-thru heater, Heater ON light, and reversible water flow.
• Pump 1 circuit, 2-Speed, 120/240V, 15A Max
• Pump 2 circuit, 1-Speed, 120/240V, 15A Max (Dual Pump Controllers Only)
• Blower circuit, 1-Speed, 120/240V, 8A Max
• Ozone circuit, 120/240V, 2A Max
• Circ. Pump circuit, 120/240V, 5A Max (Optional)
• 12 volt light that plugs into most existing spa light sockets.
• *Color-coded 48 inch motor(s), blower and ozone cords with matching color-coded interlocking receptacles

*Cords are only provided depending on selections below

Control Features

• Includes air button controls with air tubings. Single-motor controllers have 3 air buttons (motor, blower, light). Dual-motor controllers have 4 air buttons (motor 1, motor 2, blower, light). Each air button has a white bezel with dimensions of 2-1/2 inches long x 1-1/4 inches wide (Approx). (If you need an acrylic button plate to mount the air buttons on, we have them.)
• Topside command center ready.
• 24-hour time clock adjustable in 15 minute increments.
• Full range thermostat.

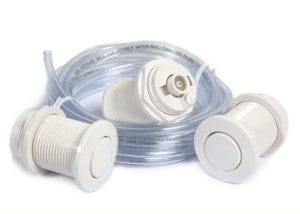

Topside Air Buttons.

Protection Features

• Canadian and United States UL Recognition (cURus) and Edison Testing Laboratories (ETL) listed for your safety.
• Freeze protection.
• High-limit protection.
• Pressure Switch installed for dry heat protection. (Heater to be installed on pressure side of pump)
• Bottom-mounted heater ensures that water from the heater cannot leak into the controller.
• SpaGuts' 2-year limited warranty covering parts and labor.

For the 220 volt Pneumatic Spa Controller we highly recommend using a Spa Side GFCI Load Center for safety, as is now required by most local electrical codes.

Your SpaGuts Pneumatic Spa Controller is custom built to your specifications and is shipped directly to you from the Spa Guts factory. Generally ships in 1 business day. FREE shipping in the continental US takes 3-5 business days via FedEx Ground.

This controller is also a replacement option for the following controller models or part numbers: PCU20-E-L-G, PCU20-D-L-G, PEB2-B, CS6000-U1-WP, CS6000-U2-WP, Y4EFB2L-9500QEZ, HQ-2000, HQ-3000, PS6002, PS6003

This controller is also available as a Spa Pack. It includes this controller, a pump and an optional blower. Click here to configure a Spa Pack
