SpaGuts T-Style Bath Heater Kit, Universal, Pressure, 2.0KW 220V, 7.0 in. x 1.5 in.

SpaGuts brand T-Style bathtub heater, 2.0KW 220V. This is the 7.0 x 1.5 inch T-Style bathtub heater, which are universal and designed to be installed on the pressure side of the bathtub pump.

This bath heater is normally meant for use on 1.5 inch plumbing, but can also be used on 1.0 inch and 0.75 inch plumbing when using the fittings that are provided. Inside diameter is approximately 2.375 inch for the black heater split nuts.

SpaGuts P/N: 25-150-0008

Features

• Stainless steel 7.0 inch x 1.5 inch T-style heater
• 2.0kw Incoloy heater element
• Built-in pressure switch to activate heating
• Automatic smart thermostat (104 degrees F limit)
• Reversible mounting
• Heater on light
• Hi-limit protection
• Includes 1.5 inch, 1.0 inch and 3/4 inch fittings
• 3ft Cord with 3 wire stranded end
• Complete Installation Instructions
• 2-year limited warranty
• UL Recognized for safety standards

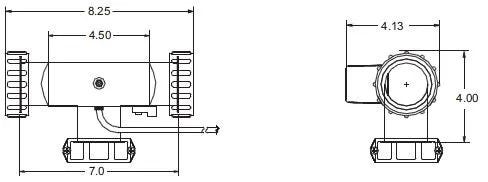

*NOTE that dimensions are approximate.

NOTE 1: If this bath heater is being installed directly on top of the pump discharge, make sure the outside thread diameter of the pump is approximately 2-3/8 inch (2.375 inch). The split nuts on this bath heater has an inside thread diameter of approximately 2-3/8 inch (2.375 inch), which is standard for 1.5 inch fittings. If the existing pump have different size threaded fittings, replumbing is required for any of our Bath Heaters.

The Pressure Switch T-Style model bath heater is also a replacement option for the following model numbers: SG202-20UP, PH202-20UP, CT100 model, CFF8P31-D01GJUZ, CT202-ALP-ET, CFF8P30-B00GAUJ

This bath heater is also a replacement option for the following brand bath heaters: American Standard, Safe-T-Heater, Hydro-Quip Compact Series Whirlpool Bath Heater, Jacuzzi RapidHeat, Pure Heat

The use of a SpaGuts brand bath heater helps to eliminate the rapid cooling that occurs during the operation of your whirlpool bath, providing you a continuous source of hot water and extending the pleasure of your jetted bath experience. This bath heater is normally for use in jetted bathtubs up to 70 gallons. For more information, please see Installation Instructions in the installation tab above. For larger bathtubs and specific heater size requirements, refer to your jetted bathtub manufacturer for their recommendation.

NOTE: This bath heater is designed to maintain the current bath water temperature in the tub, and is not meant to heat water from cold to hot.
