BP100, CY and VS Hot Tub and Spa Packs

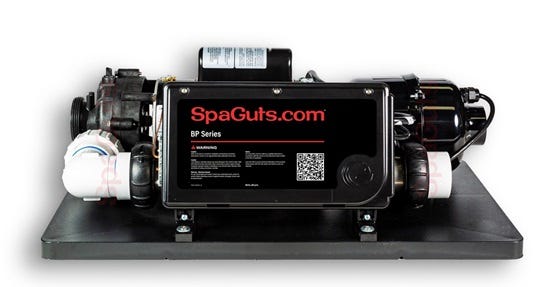

SpaGuts BP100 Series Spa Pack
Starting at $789.95

SpaGuts CY Series Spa Pack
Starting at $914.95

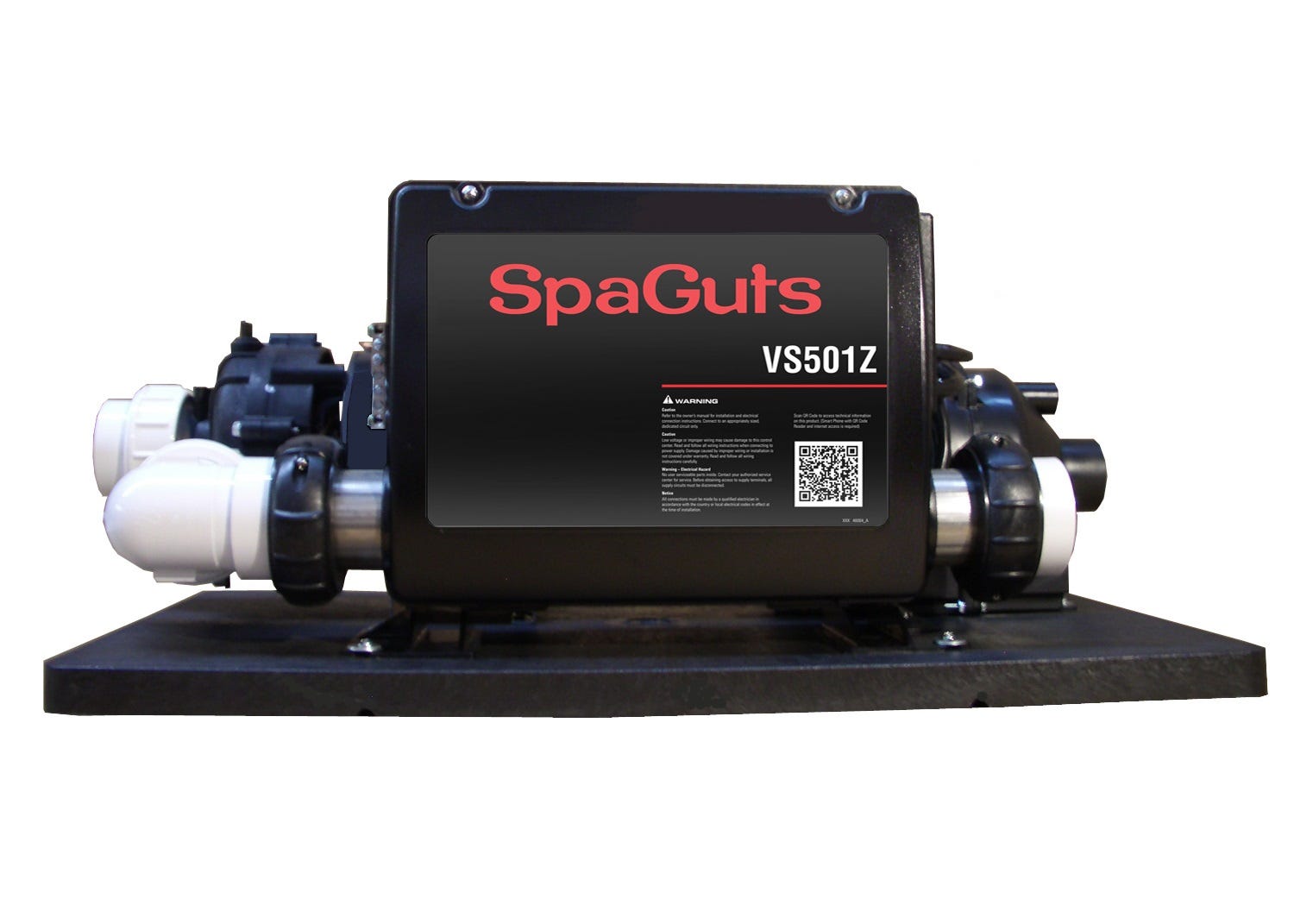

SpaGuts VS Series Spa Pack
Starting at $979.95
ElectronicPack4 ElectronicPack2 ElectronicPack1
Click Here to Configure the BP100 Series Electronic Spa Pack

Click Here to Configure the CY Series Electronic Spa Pack

Click Here to Configure the VS Series Electronic Spa Pack (LIMITED QUANTITY)
SpaGuts offers electronic equipment spa packs with your choice of spa controllers. All three have the same great quality, manufactured to our rigorous standards, and carry the same 2-year manufacturer's limited warranty. Depending on the configuration of the spa, one series may be more appropriate for the specific spa application than the other. As an example and shown in the table below, the CY series comes with J and J Mini Style Moded Cords with matching receptacles. This helps prevents connecting the wrong cord to the wrong receptacle. If an economy mode that only heats during the filtration cycle or a sleep mode for extended periods of non-use are preferred for operational cost savings then the BP100 or VS series would the obvious choice (CY Series require WiFi Module or K450 Topside Panel). If you would like the flexibility of installing the controller on either side of the motor then the BP100 and VS series would be the obvious choices. The BP100 and VS series uses M7/M8 Technology. The CY series uses Pressure Switch Technology, which requires pump discharge side installation. And for those who desire WIFI Control to monitor and control the spa from a phone or a computer anywhere in the world, the BP100 and CY series are a step ahead that provides this feature. Whatever installation and/or features requirement you have, SpaGuts has an Equipment Spa Pack right for your application. Select each product for additional features information and configuring an equipment spa pack.
Features BP100 Series CY Series VS Series
110V/220V Power Supply (220V Requires 4-Wire. Neutral Required) X X  X
Optional 220V 3-Wire Upgrade
Convertible 110V/220V Circuits X X  X
1.375KW/5.5KW Flo-Thru Heater X X  X
Optional 2nd Pump Circuit X (*If No Blower) X  X
Optional 2nd Pump Circuit, Dual Speed   X
Optional Blower Circuit, Single Speed X (*If No Pump 2) X  X
Ozone Circuit X X  X
Optional Circ Pump Circuit X X  X-1
Optional Aux or ACC Circuits X X  X-2
Upgradable from Single to Dual Pump Circuits Using Same Controller Box X X
12V Light X X  X
Freeze Protection X X  X
Hi-Limit/Overheat Protection X X  X
Pressure Switch Protection   X
Optional Flow Switch Protection   X
M7/M8 Technology Protection X    X
In.t.cip Technology Protection
Economy Mode X X-7  X
Filtration Cycle X X  X
Sleep Mode X    X
Digital Topside Panel X X  X
Fahrenheit or Celsius Display X X  X
Topside Cover Plate X Optional  X
Molded Cords with Different Pin Plugs   X
Amp Cords X    X
Heater ON Light on front cover of Controller box   X
Optional Auxiliary Topside X X  X-4
Optional Floating IR Remote Control
Optional WI-FI Control X X
Temperature/Hi-Limit Sensors X X  X
Sensors Pre-Mounted on Heater X X  X
Skid Base Mounted Components X X  X
2-Year Limited Warranty X X  X
Optional 3rd Year Warranty X X
LEGEND
X-1 = Circ Pump Circuit for Small Circ Pump not available for single pump, no blower systems.
X-2 = Aux or ACC circuit for a constant voltage output not available for single pump, no blower systems.
X-3 = Economy Mode only available on K450 Topside Panel OR Higher and/or via WI-FI control
X-4 = Optional Auxiliary Topside Panel not available for single pump, no blower systems.
X-5 = Optional Floating IR Remote Control not available for single pump, no blower systems.
X-6 = Hi-Limit Sensor is pre-mounted on Heater. Temperature sensor to be mounted per Installation Instructions.
X-7 = Economy Mode only available on K450 and K8-OP Topside Panel OR Higher and/or via WI-FI control
