Vico Ultimax Spa Pump, Niagara by Balboa, 56Y, 2.0HP, 3.0BHP, 220V 2SPD, 2.0 in, 5235208-S

In stock
In stock

Replacement Vico Ultimax Spa Pump, Niagara model by Balboa. Rated 2.0HP Continuous, 3.0 Break HP, 220V 2-speed 56-Frame, 2.0-inch Intake and Discharge. OEM part numbers 1016062, 1016204, 5235208-S and 5235208-B.

SpaGuts P/N: 15-175-6010


  • Labled 2.0HP Continuous (Previously Labeled 1.5HP)
  • Rated 8.0/3.0A (Amp Rating Varies*)
  • Dual Speed Pump (Low/High. Can also be wired for single speed)
  • 2.0-inch Intake and Discharge (Outside thread measures approximately 3.1 inch)
  • Replaces most Vico Ultimax or Niagara spa pumps with similar amp draw
  • UL, TUV, CSA, and CE/VDE/GS certified
  • All seals are cabon ceramic with Viton® elastomers for long-lasting performance
  • Cool running 56 frame motor
  • Reliable performance and long service life for more enjoyable ownership

Dimensions* (Approx): 15.82 inch L x 8.83 inch H x 6.5 inch diam.

*NOTE: Amp rating and dimensions may vary depending on the motor brand and model that is used with this pump. Motor brand can be US Motors, AO Smith Century Laser, GE, Etc... Please contact us to verify dimensions if space is very limited for the new pump.

This pump is also a replacement option for the following pump models: 5235208-B, PUUPS2482582F, 1015109, 5KCR48TN2351CX (Motor Only; Verify Pump Model), 5KCR48TN2351X (Motor Only; Verify Pump Model), PUUM562H26UM8M1 (Verify Pump Model), 630-6101 (1.5HP), 1016169, 1016204, PUUMSC2252582FR, PUUMSC2252582FJ, PUUMSC2252582F, 1016181, 1016182, 1016030, 1016228 (5HPR), 1015052, 1056010, 1016010, 1015112 (1-Speed), PUUMSC2502582FR, 5KCP49TN9069X (Motor Only; Verify Pump Wetend to match), 5KCR48TN2351BX (Motor Only; Verify Pump Wetend to match), 1016168 (Cal Spas, PL390), PL391 (Cal Spas), 1016209, 1016206, 1056062, 1016204, 1016012

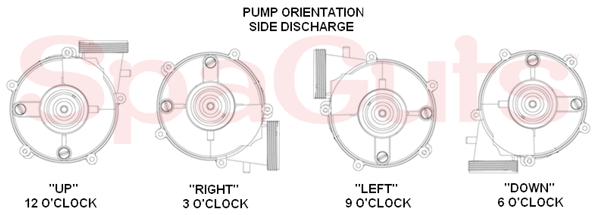

The pump image shows the pump discharge on top pointing to the 12 o'clock position. The pump discharge can also be rotated every 90-degrees (3, 6 or 9 o'clock positions) by loosing the four long bolts at the back of the motor. The pump intake (suction) is located in the front center face of the pump.


This item comes with a 2-Year limited warranty.
