Replacement Vico Ultima Plus Spa Pump, Victoria model by Balboa. Rated 2.0HP 220V 2-speed 48-Frame, Side Discharge, 2.0 inch Intake and Discharge. OEM part numbers 1015017, 1015030 or 1055013.
THIS ITEM IS NO LONGER AVAILABLE. PLEASE SEE LINK TO 302A Sta-Rite® Dura-Jet by Balboa Spa Pump Replc, 2.0HP, 220V, 2in, DJAYGB-0101, 4239208-S AS AN ALTERATIVE REPLACEMENT OPTION.
NOTE: The pump photo shown above does not show a capacitor mounted on top of the motor. We cannot guarantee if the motor that is shipped will or will not have the capacitor attached on top of the motor. Make sure there is plenty of room under the spa for a motor with 6 inches long x 2.5 inches tall x 2.25 inches wide capacitor on top of the motor.
SpaGuts P/N: 15-175-5017
This is a Side Discharge Pump with 2.0 inch fittings. Outside thread to outside thread measurement on the pump fittings is approximately 3.1 inch. (Pump Unions sold separately)
*Amp rating and dimensions may vary depending on the motor brand and model that is used with this pump. Motor brand can be US Motors, AO Smith Century Laser, GE, Etc... Please contact us to verify dimensions if space is very limited for the new pump.
Dimensions (Approx*): 14.75" L x 7.58" H x 6" diam.
Motor part numbers that are normally used for this pump: 7-196012-03, 5KCR39UN3790BX (6.7A Motor), 5KCR39UN2842DX (8.8A), T55MWCFR-1288, BN51
This is a Balboa Victoria Vico Ultima Plus Spa Pump for above ground hot tubs which is a replacement option for the following pump part numbers: PUULSC40258220H (1-Speed; If wiring for 220V), 1014237 (1-Speed; If wiring for 220V), PUULSC40258220GR (1-Speed; If wiring for 220V), PUULS40258220G (1-Speed; If wiring for 220V), 1014250 (1-Speed; If wiring for 220V), PUULS220258220H, PUULSC220258220GR, PUULSC220258220, 1014224, 1014225, 1014246, PUULC2102582F (1.0HP 220V), PUUPC220258220, UPXX222008C, PUUL220258220H, PUULSC20258220 (1-Speed), 1054347 (1.5HP 220V), 1014185, 630-6078 (HP-130 1-Speed 7.5A), 1055009

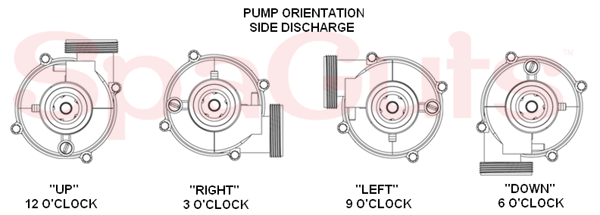

The pump image shows the pump discharge on top pointing to the 12 o'clock position. The pump discharge can also be rotated every 90-degrees (3, 6 or 9 o'clock positions) by loosening the four long bolts at the back of the motor. The pump intake (suction) is located in the front center face of the pump.
The pump normally ships from the factory with the discharge pointing "UP" which is the standard position for shipping, but they can be turned or what is called "clocked" into any position (12, 3, 9 or 6 o'clock position). Rotation of the pump discharge can be done in the field, but we recommend having it performed by a professional spa technician who is experienced. Or choose the option to have the pump professionally rotated at the factory before it ships. This is to avoid water leaks and operational problems due to improper removal and installation in the field that will affect the warranty. As you face the front end of the pump wet end, available positions are 12 o'clock (Up), 3 o'clock (Right), 9 o'clock (Left), and 6 o'clock (Down, which is very rare).
You may add a cord to be attached to the motor at a discounted price. See cord options above.
If buying this pump for retrofitting, add a pair of pump unions that connects to your pipes which then screws directly onto the pump threaded fittings. O-rings are included with the pump unions. Regular price is $22.95.
If buying this pump as an exact replacement that does not require retrofitting, it is highly recommended to replace the pump union o-rings at the same time. Old pump union o-rings may cause leaks that can damage the new pump and affect the warranty. O-rings for pump unions are only available with a pump union purchase.
This item comes with a 2-Year limited warranty.
