SPECIAL ORDER NOTES: THIS ITEM IS A SPECIAL ORDER AND HAS AN ESTIMATED 2-5 BUSINESS DAYS LEAD TIME BEFORE SHIPPING. SPECIAL ORDERS ARE NON-RETURNABLE AND CANNOT BE CANCELED ONCE THE ORDER IS PLACED.
Waterway Spa Pump, Executive 56 model, 3.0HP 220V 2-Speed Side Discharge with 2.0-inch Intake.
SpaGuts P/N: 15-350-0030
*NOTE: Amp rating and dimensions may vary depending on the motor brand and model that is used with this pump. Motor brand can be US Motors, AO Smith Century Laser, GE, Etc... If space is very limited for the new pump, please check with sales to verify actual dimensions.

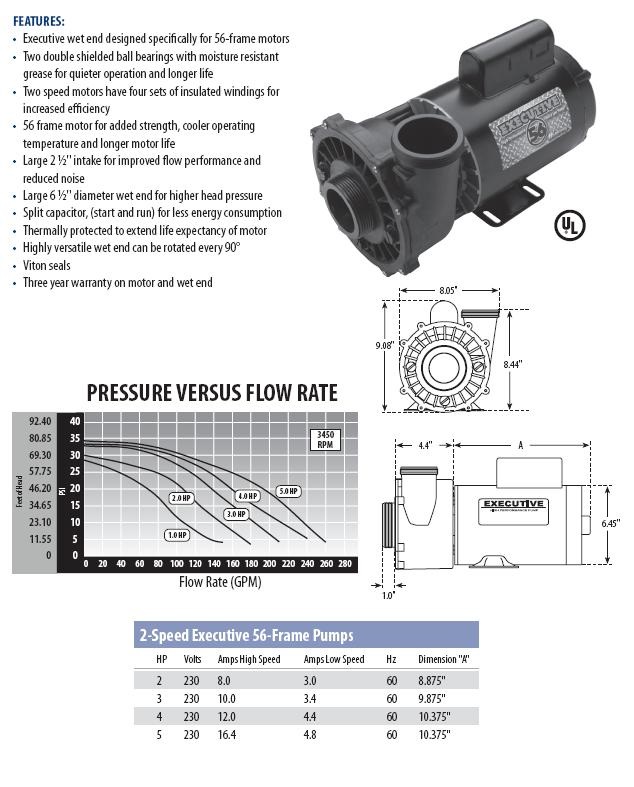

The pump image shows the pump discharge on top pointing to the 12 o'clock position. The pump discharge can also be rotated every 90-degrees (3, 6 or 9 o'clock positions) by loosening the four long bolts at the back of the motor. The pump intake (suction) is located in the front center face of the pump.
This 56-Frame pump is also a replacement option for the following pumps (Just match the size fittings and amp rating to get the same performance pump): Waterway 3721221-1D, Aquastorm by Infinity Spas, Massage Master XLT, Super-Flo, 372122A-1D, 3721221-0385, Model PF-30-2N22C, 3721221-0D5A, 3721221-0D87, 372122A-0D76VK
This pump normally uses the following motor part numbers: 7-187694-01
Keep in mind to not over power your spa by going from a 48-frame motorto a 56-frame motor.
If you need to install your spa pump near or above the waterline - as is common for in-ground spas - you will need a pump pot. The pump pot help prevents water from draining back into the spa when the motor is turned off.
