SpaGuts brand SGBP100 Spa Controller Kit w/ TP200W Topside, 4.0KW Remote HTR (SEE NOTES BELOW)

THIS ITEM IS CURRENTLY OUT OF STOCK. ESTIMATED IN STOCK DATE IS UNKNOWN. IF YOU WOULD LIKE TO PUT IN THE ORDER NOW TO HOLD YOUR PLACE IN LINE FOR SHIPMENT WHEN THE PART ARRIVES BACK IN STOCK, PLEASE GIVE SPAGUTS SALES A CALL AT 714-764-0013.

SpaGuts brand SGBP100 Spa Controller Kit with TP200W, is powered by Balboa Water Group, but offers an upgraded 2 year warranty instead of the standard 1 year warranty provided on Balboa labeled components. This is the Alternative Replacement Option for the Balboa and SpaGuts brand Models VS300 and VS500Z Spa Controller Kits.

NOTE 1: The heater is detached from the controller box, and can be remotely mounted. Make sure there is space to mount the controller box when using as a replacement for the Balboa and SpaGuts brand Models VS300 and VS500Z Spa Controller Kits.

NOTE 2: Component Cords and Cables are Sold Separately.

This controller operates on 110V/220V 60Hz (220V requires 4-wire service, Neutral is Required). This SGBP100 controller is equipped with Balboa Water Group's patented M7 and M8 technology which allows the heater to be mounted either on the suction or discharge side of the pump for simplified installation. M7 and M8 Technology also completely eliminates the pressure switch which otherwise requires occasional manual adjustment making the SGBP100 an ideal choice if a pressure switch is not necessary on your spa configuration.

An option only available from SpaGuts, this SGBP100 Spa Controller Kit  is available factory configured to your exact specifications or as a Retrofit Kit that is easily field configured at the time of installation. Competitors only offer controllers as a retrofit "do it yourself kits" without the time saving factory configuration optionally available by SpaGuts. Factory Configuration includes set-up of Internal component circuits, Dip Switches and Program Setting to work with your existing Pump 1, Ozone, Circulation Pump, and the included SpaGuts TP200W Model Topside Panel, so you don't have to do any internal wiring, set-up configuration and programming, making your controller plug and play right out of the box. Best value for most installers; saves time and prevents costly installation errors. Contact Us if a Small Circulation Pump circuit needs to be activated for Factory Configuration.

SpaGuts P/N: 11-200-2412

Features:

• SpaGuts SGBP100 Spa Control System
• SpaGuts Topside Panel, TP200W Model, No Overlay
• SpaGuts Overlay, TP200W Model
• Topside Cover Plate
• Program Setting from Compatible Topside Panel
• Wifi Optional (Wifi Module Sold Separately)
• M8 Pump Saver Technology
• 110/220V 60Hz (220V requires 4-wire service, Neutral is Required)
• Pump 1 circuit, 2 speed, 110/220V, 12A Max*
• Circ Pump circuit, 110/220V, 2A Max* (24Hr; Pump 1 becomes 1-speed when activated; Requires 25 GPM; Pump 1, Circ and Ozone MUST be the same voltage)*
• Ozone circuit, 110/220V, 1A Max*
• Audio/Video circuit, 110/220V, 2A Max** (Constant Circuit)
• 12V 12W Light circuit
• Light Cable with Light Socket, 8ft
• Remote 4.0KW, 240V Flo-Thru Incoloy High Flow heater with M7 technology with 36 inch cables
• Stainless steel heater housing
• No Pressure Switch. Heater can be installed on suction or discharge side of pump
• Quick Disconnect Heater Cable
• UL Recognized for your safety
• Freeze protection
• High-limit protection
• Filtration mode
• Economy Mode
• Tech Book (Only Available Online. See Tabs Above)
• 2-Year Limited Warranty (Optional 3rd Year Upgrade)

*NOTE: See Wiring Diagram for Amperage Limitation when Multiple Components are connected.  (Pump 1, Circ Pump and Ozone MUST be the same voltage)

Dimensions (Approx.):

• Controller: 12.69 inch L x 8.32 inch H x 5.55 inch W
• Heater: 15.0 inch L x 2.0 inch Diameter
• Topside:  4.344 inch x 1.586 inch
• Topside Cover Plate:  8.5 inch x 4.0 inch

Compatible Balboa Topside Panels (Sold Separately):

• TP200T, TP240T, TP240W, TP260T, TP260W, TP540, TP500, TP500S, TP400T, TP400W, TP600, TP700, TP800, TP900, SpaTouch

Balboa Ultrazone Kit Special Discount!!!

Add an ozone with your SpaGuts Brand Spa Controller Kit order. We offer a Special Discount on the Balboa Ultrazone Sanitation System, Ozone Kit, Dual Voltage 110/220V, 59297-KIT. This part needs to be shipped together in the same box with the SpaGuts Brand Spa Controller Kit.

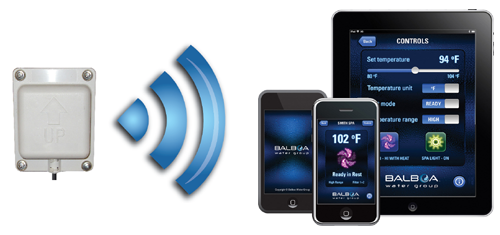

Balboa WIFI and CMS Special Discounts!!!

• iPhone App! Control your spa from your iPhone, iPad, or iPod!

Add to the SpaGuts Controller Kit the optional Balboa Control My Spa, 59303 at a DISCOUNTED PRICE, download one of the iPhone Apps, and use your iPhone, iPad, iPod or computer to control your Balboa BP7 Model Controller remotely! Also works with Android! The Balboa BP7 Model Controller are pre-program with the software capable of WIFI control. Imagine the possibility of being able to monitor your spa and control it remotely within your wifi network with the Home App, or do it all remotely from across country with the World App using the internet. Basically Amazing!!! This part needs to be shipped together in the same box with the SpaGuts Brand Spa Controller Kit in order to get the special discount.

• (*iPhone, iPad, iPod and computer are not included)

This controller kit is also an alternative replacement option for the following part numbers: Balboa G5311 BP100UX System, Balboa G5310 (System Only), 11-175-5310 (System Only), 11-200-5310 (System Only), Balboa G6402-01 (Kit with 4.0KW heater), Balboa G6422 (Kit with 4.0KW heater, TP260T),  58-138-3250 (Kit with 4.0KW heater), 58-138-3230 (System Only), 58-138-3251 (Kit with 4.0KW heater, TP260T), Balboa 58421 Heater, SpaGuts 54855 VS300 Spa Controller Kit, SpaGuts 54803 VS500Z Spa Controller Kit, SpaGuts G5311 Spa Control System, 401A, 401A1, 401A1P1L9, 401A112, 401A2, 401A2L0, 401A212P1L0, 401A2P1, 401A2P1O3, 401A2P1L0, 401A2P1L9, 401A2P1L24, 401A2P1CM1L0, 401A221P1L9, 401A222, 401A222P1, 401A222P1O3L0, 443A, 443A1, 443A2
