SpaGuts CY6230H Spa Controller Kit w/Topside IN.K8-3OP, 5.5KW HTR, Wifi Enabled

In stock
In stock

SpaGuts brand CY Series Electronic Spa Controller Kit, Wifi Enabled, Model CY6230H, is powered by Gecko Aeware, and offers an upgraded 2-year warranty instead of the standard 1-year warranty provided by many other brands.  It includes an IN.K8-3OP Topside Panel, and a Fixed 5.5KW Flo-Thru Heater.  Advanced electronics!  WIFI control from your iPhone! Color-Coded Connections to help eliminate component plug-in errors.

An option only available from SpaGuts, the CY Series is available Factory Configured to your exact specifications or as a Retrofit Kit that is easily field configured at the time of installation.  Competitors only offer controllers as a Retrofit "do it yourself kits" without the time saving Factory Configuration optionally available by SpaGuts.  Factory Configuration includes set-up and bench testing of Internal component circuits to work with your existing pumps, blower, and ozone so you don't have to do any internal wiring or programming, making your controller plug and play right out of the box.  Best value for most installers; saves time and prevents costly installation errors.  Once the order is placed with the Factory Configuration Fee, we will contact you to collect information that is required to setup the controller.

This controller operates on 220V 60Hz (220V requires 4-wire service).  The SpaGuts brand CS6230H controller is equipped with Gecko Aeware Pressure Switch technology, which is the original and reliable water flow detection, and also have a lower replacement cost.

SpaGuts P/N:  11-200-6234


  • 220V 60Hz Power Supply
  • Pump 1 Circuit, 2 Speed, 110V/220V, 15A Max
  • Pump 2 Circuit, 1 or 2 Speed, 110V/220V, 15A Max*
  • Blower Circuit, 1 Speed, 110V/220V, 8A Max
  • Ozone, 110V/220V, 5A Max
  • Topside Connection, C1
  • Communication Links, CO
  • Light, 12V, 12W (1 Intensity), 1A Max

NOTE: A circulation pump circuit option is available upon request for Special Configuration. Additional Fee applies.


  • SpaGuts CY6230H-U-WP Controller with 5.5KW Flo-thru Heater
  • Topside Panel, IN.K8-3OP, 8-Button, 10ft Cable, 0607-007067
  • Topside Overlay, IN.K8-3OP, 8-Button, 9916-101675
  • Pump 1 Cord, Red Plug, 2-Speed, 14 AWG, 4-Wire, 4ft, 15-100-1115
  • Pump 2 Cord, Pink Plug, 1-Speed, 14 AWG, 3-Wire, 4ft, 15-150-2003
  • Light Cable with Socket, 8ft, 40-150-1515
  • 12V 12W Clear Light Bulb, 40-175-9912
  • Pair of 2 inch Heater Split Nuts, Heater Tailpieces and O-ring Gaskets
  • Dual Temp/HL Sensor Mounted on Heater
  • Pressure Switch Mounted on Heater
  • Supplemental Installation Instructions (Included and also available online. See Tabs Above)
  • Owners Operation Guide
  • Installation Instructions
  • Topside Panel Template

*NOTE 1: The Blower (Purple) and Ozone (Yellow) Cords are sold separately. See below for discounted add-on price (If Needed).

*NOTE 2: If setting up Pump 2 for 2-Speed operation, the Brown Receptacle and Brown Cord will need to be purchased separately.


  • 110V or 220V (Requires 2 Hots, Neutral and Ground
  • The 5.5KW Hi-Flo Heater requires a Minimum of 25 GPM of Water Flow, and Minimum 1.5 inch Plumbing


  • Advanced electronics!
  • In.put - New Input Terminal Bloc - In.put was designed to ease wire insertion (up to # 4 AWG) and connections. Tighter input connection reduces heat generated for increased component lifetime.
  • In.stik - Automated Software Upload - In.stik a pen drive with an connector very similar to a USB memory stick. It connects to the CY System and contains data to program or configure its system. The CY System executes the data upload automatically.
  • Pressure Switch Protected - Water pressure is monitored by the pressure switch to help prevent the heater element from overheating.
  • Field-Serviceable Parts - The CY Series provides easy access to the controller board for all maintenance and replacement requirements. Each component circuit can also be field configured from 110V to 220V, or from 220V to 110V.
  • UL Recognized and ETL Approved for your safety
  • 2-Year Limited Warranty

Auxilary Topside Panel (Sold Separately):

  • IN.K120-3OP Auxiliary Topside Panel, 0607-005019

Add the optional IN.K120-3OP Auxiliary Topside Panel for additional control from the other side of the spa! Controls up to 3 pumps, and a light. It comes with a 20ft cable, and plugs into one of the CO ports on the main circuit board.

WIFI Optional (Sold Separately):

  • iPhone App! Control your spa from your iPhone, iPad, or iPod!

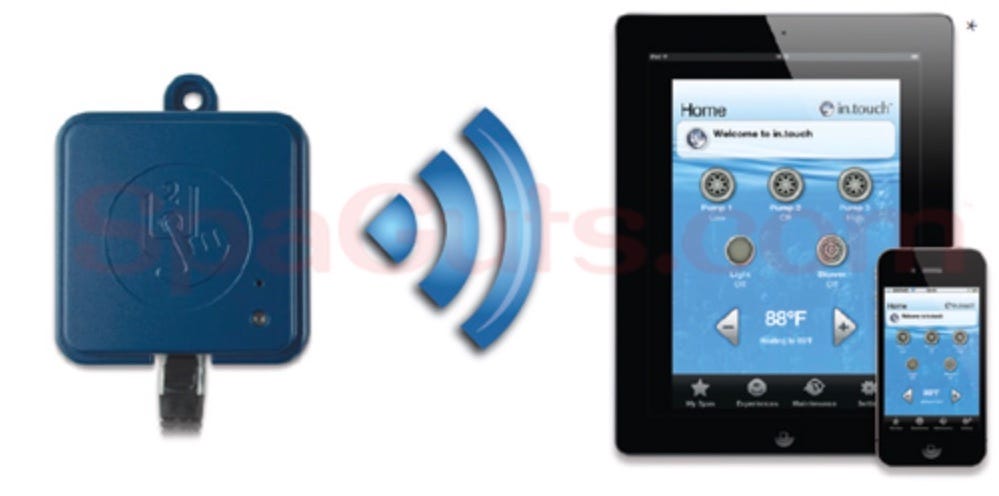

Add the optional IN.TOUCH 2 RF Interface Module, P/N 0608-521020, download one of the iPhone Apps, and use your iPhone, iPad, iPod or computer to control your Gecko IN.YE Controller remotely! Also works with Android! The Gecko IN.YE Controller we have in stock are pre-program with the software capable of WIFI control. Imagine the possibility of being able to monitor your spa andcontrol it remotely within in your wifi network with the Home App, or do it all remotely from across country with the World App using the internet. The wifi App also allows you to set all your Economy and Filtration Cycles through your phone (iPod, iPad or computer), with precision that goes to the minutes! Basically Amazing!!!


  • (*iPhone, iPad, iPod and computer are not included)

Dimensions (Approx.):

  • Controller: 12.5 inch L x 10.5 inch H x 4.5 inch W
  • Heater: 15 inch L x 2 inch Diameter
  • Topside Panel: 7.0 inch L x 3.25 inch W

Balboa Ultrazone Kit Special Discount!!!

If you would like to add an ozone with your SpaGuts Brand Spa Controller Kit order, we offer a Special Discount on the Balboa Ultrazone Sanitation System, Ozone Kit, Dual Voltage 110/220V, 59297-KIT. This part needs to be shipped together in the same box with the SpaGuts Brand Spa Controller Kit.


You MUST contact SpaGuts Sales Team at 714-764-0013 to place the Spa Controller Kit order with the Special Discounted Balboa Ultrazone Kit. If you have already placed a SpaGuts Brand Spa Controller Kit order but want an ozone with it BEFORE it ships out, please contact SpaGuts Sales Team to place an order for the Special Discounted Balboa Ultrazone Kit. This offer is not valid once the Spa Controller Kit has already shipped.

This controller kit is also a replacement option for the following Gecko Controllers: 10-150-1481 (SpaGuts CS6230), 0202-205037 (S-Class with TSC-19 Topside Panel), 0202-205212 (S-Class with TSC-19 Topside Panel), 0202-205038 (S-Class with TSC-19 Topside Panel), 3-72-7079 (S-Class with TSC-19 Topside Panel, 4.0KW), 0202-205013 (S-Class with TSC-19 Topside Panel), 0202-205016 (S-Class with TSC-19 Topside Panel), 0202-205163 (S-Class, 4.0KW, Amp Connectors, TSC-8-GE2 or TSC-52), 3-72-7036 (S-Class, 4.0KW, Amp Connectors, TSC-8-GE2 or TSC-52), 3-72-7021 (S-Class with TSC-19 Topside Panel, 4.0KW), 0202-205034 ( S-Class with TSC-19 Topside Panel, 4.0KW), 3-72-7014 (S-Class, 4.0KW, TSC-19)

Your Spa Guts electronic spa controller is custom built to your specifications and is shipped directly to you from our factory, usually within 1 business day of your order. FREE shipping takes 3-5 business days via FedEx Ground.

This controller is also available as a Spa Pack. It includes the controller, a pump and an optional blower. Click here to configure a Spa Pack
