SpaGuts Universal Inline Bath Heater Kit, 1.5KW, 110V, 5.5 in. x 1.5 in.

Out of stock
Out of stock
SKU
233A
$149.95

THIS SPAGUTS MODEL BATH HEATER IS CURRENTLY OUT OF STOCK. SEE LINKS BELOW IF YOU ARE INTERESTED IN A GENERIC BRAND BATH HEATER.

1) SEE THE 25-150-0018 Pure HEAT Bath Heater Kit With Pressure Switch AS AN ALTERNATIVE REPLACEMENT FOR THE "PRESSURE" VERSION.

2) SEE THE 25-150-0019 Pure HEAT Bath Heater Kit With Vacuum Switch AS AN ALTERNATIVE REPLACEMENT FOR THE "VACUUM" VERSION.

SpaGuts brand Universal Inline Bath Heater Kit, 1.5KW 110V. This is the "Short Version" 5.5 x 1.5 inch in-line style bathtub heater, which can be installed on either the pressure or suction end of your bathtub pump depending on selection.

NOTE: This bath heater is designed to maintain the current bath water temperature in the tub, and is not meant to heat water from cold to hot.  Not for use in a Spa.

This bath heater is normally meant for use on 1.5 inch plumbing, but can also be used on 1.0 inch and 0.75 inch plumbing when using the fittings that are provided (Vacuum Switch version is not for use on 0.75 inch plumbing). Inside diameter is approximately 2.375 inch for the black heater split nuts.

SpaGuts P/N:

  • 25-150-0009, Pressure - OUT OF STOCK
  • 25-150-0010, Vacuum - OUT OF STOCK

Features

  • Stainless Steel 5.5 inch x 1.5 inch in-line heater
  • 1.5kw 110V Incoloy heater element
  • Built-in pressure or vacuum switch to activate heating
  • Automatic smart thermostat (104 degrees F limit)
  • Reversible mounting
  • Heater on light
  • Hi-limit protection
  • 1.5 inch, 1.0 inch and 3/4 inch pipe fittings included*
  • Pair of 1.5 inch Heater O-Ring Gaskets included
  • 110V 60Hz 3ft NEMA cord
  • Copper Bonding Wire included, 36 inch
  • Installation and Operation Manual
  • 2-year limited warranty
  • UL Recognized for safety standards

    *NOTE that the 3/4-inch pipe fittings are not provide for the Vacuum model.

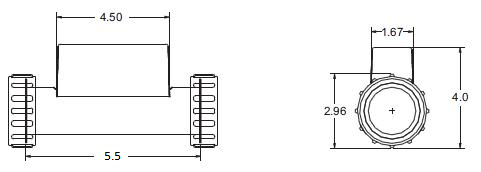

In-Line Bath_Heater_dim_white_5.5.png

*NOTE that dimensions are approximate.

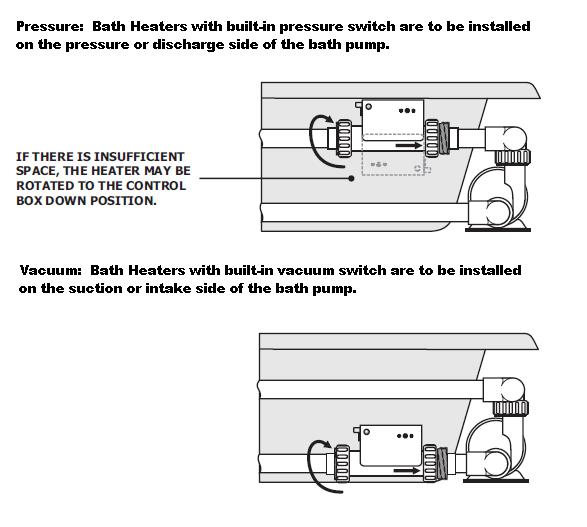

Pressure or Vaccum: To install this bathtub heater on the pressure side of your bathtub pump, select the model below with the built-in pressure switch. To install this bathtub heater on the suction side of your bathtub pump, select the model below with the built-in vacuum switch.

In-Line_Install_diagram.JPG'

The Pressure Switch model bath heater is also a replacement option for the following model numbers: SG101-15UP-S, PH101-15UP-S, CT100, C3B84P1-D012JUZ

The Vacuum Switch model bath heater is also a replacement option for the following model numbers: SG101-15UV-S, PH101-15UV-S, 26-0014M-RA, CT100, C3B94P1-E012JUZ

This bath heater is also a replacement option for the following brand bath heaters: American Standard, Safe-T-Heater, Hydro-Quip Compact Series Whirlpool Bath Heater, Jacuzzi RapidHeat, Pure Heat, Eljer

The use of a SpaGuts brand bath heater helps to eliminate the rapid cooling that occurs during the operation of your whirlpool bath, providing you a continuous source of hot water and extending the pleasure of your jetted bath experience. This bath heater is normally for use in jetted bathtubs up to 70 gallons. For more information, please see Installation Instructions in the installation tab above. For larger bathtubs and specific heater size requirements, refer to your jetted bathtub manufacturer for their recommendation.

NOTE: This bath heater is designed to maintain the current bath water temperature in the tub, and is not meant to heat water from cold to hot.  Not for use in a Spa.
