JED 103 Corona Discharge Ozonator Kit with Amp Cord

The JED 103 Ozone Kit comes standard with an Amp cord (EH Cord), but it is also available with any other cord type with 110V or 220 volt configuration.

The JED 103 manufactures ozone using the European method of an internal corona discharge chip.  CD chip generation is preferred because it is proven to produce a consistent amount of ozone while the ultraviolet type units may lose effectiveness as the bulb gets weaker over time (especially when activated on/off many times throughout a day).  Ultraviolet type units are recommended for continuous operation.

While the effectiveness may not be that significant and probably won't affect water quality it is helpful to understand the differences.  Both are outstanding units.

The JED 103 is rated at 20,000 hours of use, which is about 10 years of normal usage and can ozonate spas up to 1,000 gallons.  Ozone output is up to 100 mg/hr.  This is a very high quality unit for residential or commercial use.

The unit ships with back-flow valve, air tubing, installation instructions, mounting screws and a 5ft 4-prong 3-wire Amp power cord (EH Cord).  The Amp cord is one of the industry standard ozone plug.

Benefits

• Small and Compact
• Produces Consistent Ozone output
• Disinfects water by killing many form of Viruses and Biological contaminants
• Reduces the use of chemicals levels up to 90%, which means reducing the discomfort of skin and eye irritations, and reduces strong chemical odors*
• Low Power Consumption

Dimension (Approx): 5 inch L x 2.25 inch H x 5 inchW

If you are adding this to a spa that is not ozone ready, you'll also need to buy either an ozone saddle clamp or an ozone inline bypass kit.

For spas that have a small circulation pump installed with 3/4 inch or 1/2 inch tube, you can install an ozone venturi injector.

*NOTE 1:  Reduction of chemical level varies upon spa usage, ozone run time, ozone generation, proper suction and/or output from the injector, water condition, water circulation, temperature, etc... Test the spa water regularly and contact a local spa store or spa technician for help to determine proper water treatment that is needed.

NOTE 2: Ozonators are for outdoor use only.

NOTE 3: Contact us to order a plug type that is not shown above.

JED CD ozone units come with a 1-year limited warranty.

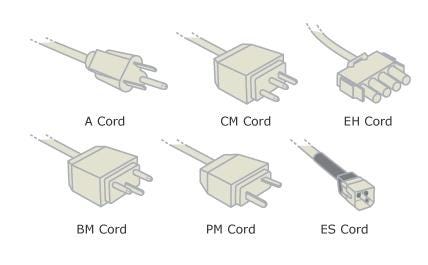

Plug types:

 The part is also the alternative replacement option for the following part numbers: 90-65-18000 (110V), 90-65-19000 (220V), 35-300-1125, 35-300-1135, 35-300-1141, 35-300-1142, 35-300-1145, 35-300-1150, 35-300-1155, 35-300-1160, 35-300-1165, 35-300-1170, 35-300-1175, 35-300-1180, 35-300-1185, 35-300-1200
