SpaGuts SGBP501G1 Spa Controller Kit w/Topside TP400W, Wifi Enabled, 5.5KW HTR

In stock
In stock
Special Price $534.95 Regular Price $584.95


  • REGULAR PRICE AT $584.95

SpaGuts brand Spa Controller SGBP501G1 TP400W Kit, Wifi Enabled, is powered by Balboa Water Group, but offers an upgraded 2 year warranty instead of the standard 1 year warranty provided on Balboa labeled components. It includes a Large 4-Button TP400W Topside Panel with Mid-Size LCD Display. The Spa Guts branded products offer a better value and a longer warranty than all competing brands.

An option only available from SpaGuts, the SGBP501G1 TP400W is available Factory Configured to your exact specifications for $54.95 or as a Retrofit Kit that is easily field configured at the time of installation. Competitors only offer controllers as a Retrofit "do it yourself kits" without the time saving Factory Configuration optionally available by SpaGuts. Factory Configuration includes set-up and bench testing of Internal component circuits to work with your existing Pump 1 and Ozone, so you don't have to do any internal wiring, making your controller plug and play right out of the box. Best value for most installers; saves time and prevents costly installation errors. Once the order is placed with the Factory Configuration Fee, we will contact you to collect information that is required to setup the controller.

This controller operates on 110/220V 60Hz (220V requires 4-wire service, Neutral is Required). The SGBP501G1 TP400W controller is equipped with Balboa Water Group's patented M7 and M8 technology which allows the heater to be mounted either on the suction or discharge side of the pump for simplified installation. M7 and M8 Technology also completely eliminates the pressure switch which otherwise requires occasional manual adjustment making the SpaGuts SGBP501G1 TP400W an ideal choice if a pressure switch is not necessary on your spa configuration.

SpaGuts P/N: 11-200-4861


  • Exclusive QR Code for Quick Access to Wiring Diagram, Operation/Installation/Technical Information
  • Exclusive SpaGuts brand Control System, SGBP501G1, 59243-01
  • Exclusive SpaGuts brand Topside Panel, TP400W Model, with 7ft cord, 50583-04
  • Exclusive 2-Year Limited Warranty (Extended Warranty Option is available upon ordering)
  • Program Setting from topside panel
  • Wifi Enabled (Wifi Module sold separately)
  • 110/220V 60Hz (220V requires 4-wire service, Neutral is Required)
  • Pump 1 circuit, 2 speed, 110/220V, 12A Max*
  • Circ Pump circuit, 110/220V, 2A Max (24Hr; Pump 1 becomes 1-speed when activated; Requires 25 GPM)*
  • Ozone circuit, 110/220V, 1A Max*
  • Audio/Video circuit, 110/220V, 2A Max (Constant Circuit)
  • 10V 12W Light circuit with socket and reflector that fits most existing light housing, 8ft cord
  • 5.5KW, 240V Flo-Thru Incoloy High Flow heater with M7 technology
  • Stainless steel heater housing
  • No Pressure Switch. Heater can be installed on suction or discharge side of pump
  • Quick Disconnect Heater Cable
  • ONE 4ft 2-Speed Amp Cord
  • ONE 4ft 1-Speed Amp Cords
  • Y-Cable, 25657
  • UL Recognized for your safety
  • Freeze protection
  • High-limit protection
  • Filtration mode
  • Economy Mode
  • Tech Book (Only Available Online. See Tabs Above)

*NOTE: Pump 1, Circ Pump, and Ozone all MUST be on the same voltage

Dimensions (Approx.):

  • Controller: 12.64 inch L x 10.56 inch H x 4.8 inch W
  • Heater: 15 inch L x 2 inch Diameter
  • Topside Panel: 8.3 inch L x 2.5 inch W x 1.1 inch H

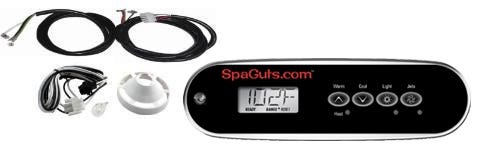

Accessorry Bag Contents:


WIFI Optional (Sold Separately):

  • iPhone App! Control your spa from your iPhone, iPad, or iPod!

Add the optional BALBOA WI-FI MODULE, 50350, download one of the iPhone Apps, and use your iPhone, iPad, iPod or computer to control your SpaGuts BP Model Controller remotely! Also works with Android! The SpaGuts BP Model Controller we have in stock are pre-program with the software capable of WIFI control. Imagine the possibility of being able to monitor your spa and control it remotely within your wifi network with the Home App, or do it all remotely from across country with the World App using the internet. Basically Amazing!!!


  • (*iPhone, iPad, iPod and computer are not included)

This controller kit is also a replacement option for the following part numbers: 56778, 54861, 10-175-4861, 10-175-4838, 54838, 56485-03, 54837, 54833, 54832, G5361 Balboa BP7 System
