Whirlpool Bathtub Blowers

Failed whirlpool jetted bath tub air blowers can be easily replaced with our Whirlpool bath tub air blower with heater, which works with all whirlpool bath tubs that requires an air blower.

The Whirlpool bathtub blower is compact and easy to install. It runs quietly, is compact and light weight. The built-in heater helps to maintain the current water temperature.

SpaGuts P/N: 15-150-6161

Features:

• 1.0HP 600W 110V 50/60Hz
• Built-in 600W Heater
• Amp Rating (Approx): 9.1A
• Built-in Air Switch
• 3ft Cord with Lighted Nema Plug
• Built-in Fuse Protection
• Thermally Protected Motor
• New Innovative Design
• Quiet Operation
• Compact and Lightweight
• 1.5 inch pipe fitting
• CE and UL Listed for your safety
• 2-Year Limited Warranty with a 3rd Year Extended Warranty Option

Operation Notes: This blower requires to be plugged into a dedicated GFCI outlet. Any time the blower turns on, the heater turns on with it.

Other Model Bath Blowers. If a different model bath blower is desired, 220V, different wattage, no air switch, please contact us.

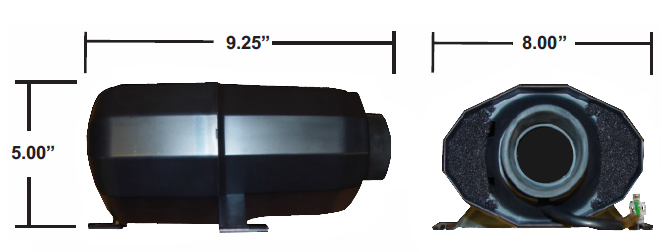

Dimensions



Optional Bath Controls

Prevent endless running of your Bath Blower.

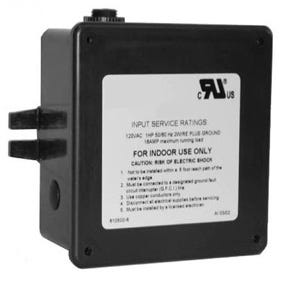

Bathtub Controller

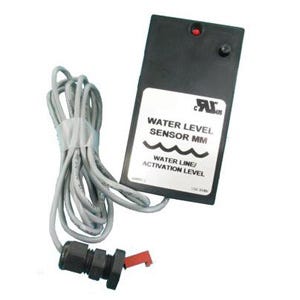

Bathtub Water Level Sensor

Prevent damage from spraying water. Ensure your bath tub’s water level is above the air jets before allowing the blower to run.

Bathtub Water Level Sensor

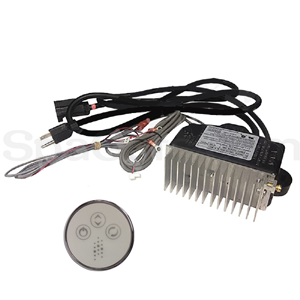

This bath control allows running the blower on variable speeds.

CG Air Bath Control w/Topside Kit

If your tub is not already equipped with an air button, you’ll need to add an air button to your order. The air buttoncomes with 4ft air tubing that connects to the air switch on the bath blower toturn it on/off.

There are no field serviceable part within the bath blower.

This bath blower is a also replacement option for the following part numbers: ABH-616NS, ABH-616N0, 994-75022-J0-S
